Product Overview

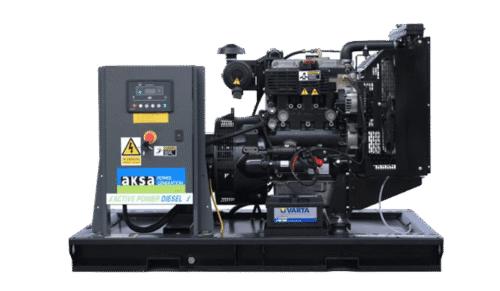

The AKSA APD110PE is a diesel generating set built for dependable standby and prime power use across commercial premises, farms, workshops, construction sites, site cabins, industrial units, and backup power applications. It delivers 110 kVA / 88 kW standby power and 100 kVA / 80 kW prime power, making it suitable for installations that require stable 400/230V, 50Hz, 3-phase electrical supply.
Powered by a Perkins 1104C-44TAG2 diesel engine, the APD110PE uses a 4-cylinder, 4.4-litre, turbocharged and intercooled, water-cooled diesel engine running at 1500rpm. The engine features direct fuel injection, electronic governor control, replaceable fuel, oil and dry element air filters, cooling radiator and fan, and a 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with revolving field design, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, and direct-drive centrifugal blower cooling. This helps provide stable electrical output for standby and prime power loads.
The APD110PE is available in open, canopy, soundproof canopy, and on-road trailer configuration depending on installation requirements. Every generating set is factory tested, including full-load testing and checks for control and safety shutdown functions before delivery.
Key features
- 110 kVA / 88 kW standby power
- 100 kVA / 80 kW prime power
- Perkins 1104C-44TAG2 diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 4-cylinder, 4.4-litre diesel engine
- Turbocharged and intercooled
- Water-cooled engine design
- Direct injection fuel system
- Electronic governor system
- Brushless single-bearing alternator
- Self-excited and self-regulating alternator system
- Class H alternator insulation
- Integrated fuel tank
- Open, canopy, soundproof canopy, or on-road trailer configuration
- Suitable for standby, prime, commercial, agricultural, workshop, construction, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD110PE |
| Fuel type | Diesel |
| Standby power | 110 kVA / 88 kW |
| Prime power | 100 kVA / 80 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | Perkins 1104C-44TAG2 |
| Engine speed | 1500rpm |
| Engine power output | 103 kWm / 138.1 HP |
| Cylinders | 4 in-line |
| Displacement | 4.4 litres |
| Bore x stroke | 105 ? 127 mm |
| Compression ratio | 18.23:1 |
| Aspiration | Turbocharged and intercooled |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Electronic |
| Starting system | 12/24V DC starter and charge alternator |
| Fuel consumption at full load | 22.6 L/hr |
| Fuel tank capacity | 180 L |
| Oil capacity | 8 L |
| Coolant capacity | 12.6 L |
| Radiator cooling air | 165.6 m?/min |
| Engine air intake | 6.27 m?/min |
| Exhaust gas flow | 16.3 m?/min |
| Alternator type | Brushless single bearing, revolving field |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Alternator cooling | Direct drive centrifugal blower fan |
| Insulation class | Class H |
| Temperature rise | 125 – 163?C continuous |
| AC waveform distortion | No load < 1.5%; non-distorting balanced linear load < 5% |
| Telephone influence factor | < 50 per NEMA MG1-22.43 |
| Telephone harmonic factor | < 2% |
| Configuration options | Open, canopy, soundproof canopy, or on-road trailer |
