Product Overview

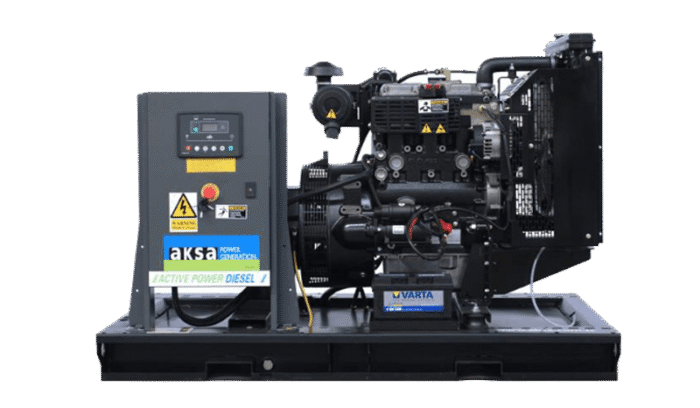

The AKSA APD10PE is a compact diesel generating set built for dependable standby and prime power use across residential backup, small commercial premises, farms, workshops, site cabins, and light-duty power applications. It delivers 10 kVA / 8 kW standby power and 9 kVA / 7.2 kW prime power, making it suitable for installations that require stable 400/230V, 50Hz, 3-phase electrical supply.
Powered by a Perkins 403D-11G diesel engine, the APD10PE uses a 3-cylinder, 1.131-litre, naturally aspirated, water-cooled diesel engine running at 1500rpm. The engine features direct fuel injection, mechanical governor control, replaceable fuel, oil and dry element air filters, cooling radiator and fan, and a 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with revolving field design, 4-pole construction, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, and solid-state automatic voltage regulation. This helps provide stable output for small standby and prime power loads.
Control and protection are handled by the DSE6120 control panel, mounted on the genset base frame. The controller monitors generator voltage, current, frequency, battery voltage, oil pressure, engine temperature, running hours, mains supply, generator output, alarms, and shutdown conditions. The unit is available in open or sound-attenuated canopy configuration for different installation requirements.
Key features
- 10 kVA / 8 kW standby power
- 9 kVA / 7.2 kW prime power
- Perkins 403D-11G diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 3-cylinder, 1.131-litre diesel engine
- Naturally aspirated and water cooled
- Direct injection fuel system
- Mechanical governor system
- Brushless single-bearing alternator
- 4-pole alternator construction
- Self-excited and self-regulating alternator system
- Solid-state automatic voltage regulator
- Class H alternator insulation
- IP21 standard alternator protection; IP22/IP23 available
- DSE6120 control panel
- Integrated 32-litre fuel tank
- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, residential, small commercial, agricultural, workshop, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD10PE |
| Fuel type | Diesel |
| Standby power | 10 kVA / 8 kW |
| Prime power | 9 kVA / 7.2 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | Perkins 403D-11G |
| Engine speed | 1500rpm |
| Engine power output | 9.5 kWm / 12.7 HP |
| Cylinders | 3 in-line |
| Displacement | 1.131 litres |
| Bore x stroke | 77 ? 81 mm |
| Compression ratio | 23:1 |
| Aspiration | Naturally aspirated |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Mechanical |
| Starting system | 12/24V DC starter and charge alternator |
| Fuel consumption at full load | 2.6 L/hr |
| Fuel tank capacity | 32 L open / 32 L canopy |
| Oil capacity | 4.9 L |
| Coolant capacity | 5.2 L |
| Radiator cooling air | 40.2 m?/min |
| Engine air intake | 0.7 m?/min |
| Exhaust gas flow | 1.8 m?/min |
| Alternator type | Brushless single bearing, revolving field |
| Alternator poles | 4 poles |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Alternator cooling | Direct drive centrifugal blower fan |
| Insulation class | Class H |
| Protection class | IP21 standard; IP22/IP23 available |
| AC waveform distortion | No load < 1.5%; non-distorting balanced linear load < 5% |
| Telephone influence factor | < 50 per NEMA MG1-22.43 |
| Telephone harmonic factor | < 2% |
| Controller | DSE6120 |
| Open set dimensions | 1400 ? 760 ? 923 mm |
| Open set dry weight | 307 kg |
| Sound-attenuated dimensions | 1522 ? 823 ? 1127 mm |
| Sound-attenuated dry weight | 430 kg |
