Product Overview
The AKSA APD22P is a compact diesel generating set built for dependable standby and prime power use across residential backup, small commercial premises, farms, workshops, site cabins, and light-duty power applications. It delivers 22 kVA / 17.6 kW standby power and 20 kVA / 16 kW prime power, making it suitable for installations that require stable 400/230V, 50Hz, 3-phase electrical supply.
Powered by a Perkins 404A-22G1 diesel engine, the APD22P uses a 4-cylinder, 2.216-litre, naturally aspirated, water-cooled diesel engine running at 1500rpm. The engine features direct fuel injection, mechanical governor control, replaceable fuel, oil and dry element air filters, cooling radiator and fan, and a 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with revolving field design, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, and direct-drive centrifugal blower cooling. This helps provide stable output for compact standby and prime power loads.

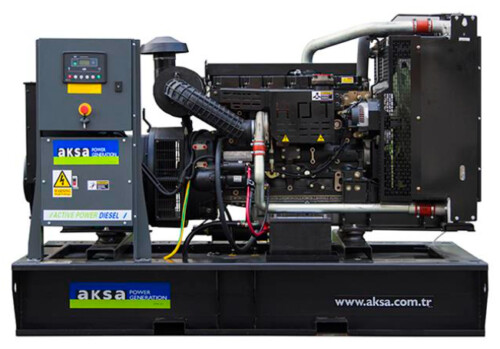

The APD22P is available in open, canopy, soundproof canopy, and on-road trailer configuration depending on installation requirements. The generator set is built as a compact, complete power unit with easy start, service-friendly access, and factory testing before delivery.
Key features
- 22 kVA / 17.6 kW standby power
- 20 kVA / 16 kW prime power
- Perkins 404A-22G1 diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 4-cylinder, 2.216-litre diesel engine
- Naturally aspirated and water cooled
- Direct injection fuel system
- Mechanical governor system
- Brushless single-bearing alternator
- Self-excited and self-regulating alternator system
- Class H alternator insulation
- Integrated fuel tank
- Compact generator set design
- Open, canopy, soundproof canopy, or on-road trailer configuration
- Suitable for standby, prime, residential, small commercial, agricultural, workshop, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD22P |
| Fuel type | Diesel |
| Standby power | 22 kVA / 17.6 kW |
| Prime power | 20 kVA / 16 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | Perkins 404A-22G1 |
| Engine speed | 1500rpm |
| Engine power output | 21.8 kWm / 29.2 HP |
| Cylinders | 4 vertical in-line |
| Displacement | 2.216 litres |
| Bore x stroke | 84 ? 100 mm |
| Compression ratio | 23.3:1 |
| Aspiration | Naturally aspirated |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Mechanical |
| Starting system | 12/24V DC starter and charge alternator |
| Fuel consumption at full load | 5.3 L/hr |
| Fuel tank capacity | 95 L |
| Oil capacity | 10.6 L |
| Coolant capacity | 7 L |
| Radiator cooling air | 67.8 m?/min |
| Engine air intake | 1.64 m?/min |
| Exhaust gas flow | 4.28 m?/min |
| Alternator type | Brushless single bearing, revolving field |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Alternator cooling | Direct drive centrifugal blower fan |
| Insulation class | Class H |
| Temperature rise | 125 – 163?C continuous |
| AC waveform distortion | No load < 1.5%; non-distorting balanced linear load < 5% |
| Telephone influence factor | < 50 per NEMA MG1-22.43 |
| Telephone harmonic factor | < 2% |
| Configuration options | Open, canopy, soundproof canopy, or on-road trailer |
