Product Overview

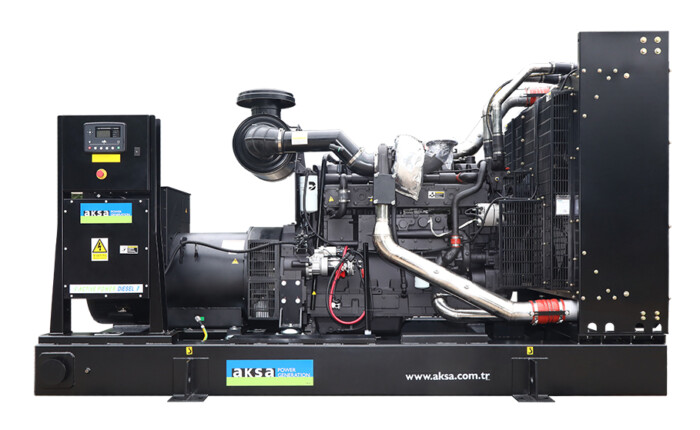

The AKSA APD1675C is a heavy-duty diesel generating set built for high-capacity standby and prime power use across commercial, industrial, infrastructure, construction, data centre, agricultural, and critical backup power applications. It delivers 1675 kVA / 1340 kW standby power and 1400 kVA / 1120 kW prime power, making it suitable for large sites requiring stable 50Hz, 3-phase electrical supply.
Powered by a Cummins KTA50G8 diesel engine, the APD1675C uses a 16-cylinder, 50.3-litre, V-type diesel engine running at 1500rpm. The engine is turbocharged and low-temperature aftercooled, with direct fuel injection, electronic governor control, replaceable fuel, oil and dry element air filters, water cooling, radiator and fan assembly, and 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with revolving field design, 4-pole construction, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, solid-state automatic voltage regulation, and direct-drive centrifugal blower cooling. This helps provide stable output for high-capacity standby and prime power loads.
Control and protection are handled by the DSE7320 control panel, mounted on the genset base frame. The controller monitors generator voltage, current, frequency, engine oil pressure, coolant temperature, battery voltage, running hours, mains supply, operating status, alarms, and shutdown conditions. The APD1675C is available in open or sound-attenuated canopy configuration depending on installation requirements.
Key features
- 1675 kVA / 1340 kW standby power
- 1400 kVA / 1120 kW prime power
- Cummins KTA50G8 diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 16-cylinder, 50.3-litre V-type diesel engine
- Turbocharged and low-temperature aftercooled
- Water-cooled engine design
- Direct injection fuel system
- Electronic governor system
- Brushless single-bearing alternator
- 4-pole alternator construction
- Self-excited and self-regulating alternator system
- Solid-state automatic voltage regulator
- Class H alternator insulation
- IP21 standard alternator protection; IP22/IP23 available
- DSE7320 control panel
- Heavy-duty fabricated steel base frame
- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, commercial, industrial, infrastructure, data centre, agricultural, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD1675C |
| Fuel type | Diesel |
| Standby power | 1675 kVA / 1340 kW |
| Prime power | 1400 kVA / 1120 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | Cummins KTA50G8 |
| Engine speed | 1500rpm |
| Engine power output | 1429 kWm / 1915 HP |
| Cylinders | 16 V-type |
| Displacement | 50.3 litres |
| Bore x stroke | 159 ? 159 mm |
| Compression ratio | 14.9:1 |
| Aspiration | Turbocharged and low-temperature aftercooled |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Electronic |
| Starting system | 12/24V DC starter and charge alternator |
| Fuel consumption at full load | 289 L/hr |
| Fuel tank capacity | Open: N/A / Canopy: 1900 L |
| Oil capacity | 204 L |
| Coolant capacity | 477 L |
| Radiator cooling air | 2100 m?/min |
| Engine air intake | 99.3 m?/min |
| Exhaust gas flow | 261 m?/min |
| Alternator type | Brushless single bearing, revolving field |
| Alternator poles | 4 poles |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Alternator cooling | Direct drive centrifugal blower fan |
| Insulation class | Class H |
| Protection class | IP21 standard; IP22/IP23 available |
| AC waveform distortion | No load < 1.5%; balanced linear load < 5% |
| Telephone influence factor | < 50 per NEMA MG1-22.43 |
| Telephone harmonic factor | < 2% |
| Controller | DSE7320 |
| Open set dimensions | 5586 ? 2100 ? 2530 mm |
| Open set dry weight | 10900 kg |
| Sound-attenuated dimensions | 9000 ? 2270 ? 3214 mm |
| Sound-attenuated dry weight | 15000 kg |
