Product Overview

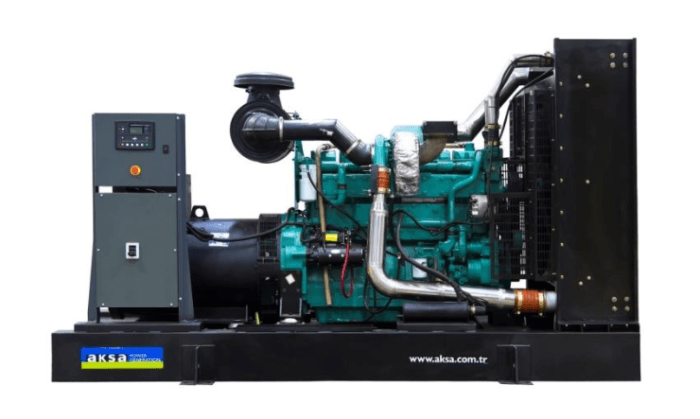

The AKSA APD400CE is a diesel generating set built for dependable standby and prime power use across commercial, industrial, agricultural, construction, workshop, and backup power applications. It delivers 400 kVA / 320 kW standby power and 360 kVA / 288 kW prime power, making it suitable for sites that require stable 50Hz, 3-phase electrical supply.
Powered by a Cummins QSZ13-G6 50Hz EPA Tier 3 diesel engine, the APD400CE uses a 6-cylinder, 13-litre, turbocharged and charge-air-cooled diesel engine running at 1500rpm. The engine features common rail fuel injection, HPCR high-pressure common rail fuel pump, electronic governor control, water cooling, dry-type air filtration, and a 24V DC electrical starting system.
The generator is supplied with an Aksa AK 5300 alternator, offering 4-pole brushless operation, Class H insulation, IP22 protection, SX440 AVR, and 1% voltage regulation. This helps provide stable output for general electrical loads and sensitive equipment used in standby and prime power applications.
Control and protection are handled by the DSE7320 control panel, which monitors generator voltage, current, frequency, battery voltage, engine oil pressure, coolant temperature, running hours, operating status, alarms, and shutdown conditions. The unit includes an integrated base fuel tank and is available in open or canopy configuration for different installation requirements.
Key features
- 400 kVA / 320 kW standby power
- 360 kVA / 288 kW prime power
- Cummins QSZ13-G6 50Hz EPA Tier 3 diesel engine
- 400/231V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 13-litre diesel engine
- Turbocharged and charge-air-cooled
- Water-cooled engine design
- Common rail fuel injection system
- Electronic governor system
- Aksa AK 5300 alternator
- 4-pole brushless alternator design
- SX440 automatic voltage regulator
- Class H alternator insulation
- IP22 alternator protection
- DSE7320 control panel
- Integrated base fuel tank
- Open or MS 70 CK canopy configuration
- Suitable for standby, prime, commercial, agricultural, site, and industrial power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD400CE |
| Fuel type | Diesel |
| Standby power | 400 kVA / 320 kW |
| Prime power | 360 kVA / 288 kW |
| Voltage | 400/231V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Standby current | 577.37 A |
| Engine | Cummins QSZ13-G6 50Hz EPA Tier 3 |
| Engine speed | 1500rpm |
| Engine standby power | 374 kW / 501 HP |
| Engine prime power | 328 kW / 439 HP |
| Cylinders | 6 in-line |
| Displacement | 13 litres |
| Bore x stroke | 130 ? 163 mm |
| Compression ratio | 17:1 |
| Aspiration | Turbocharged and charge-air-cooled |
| Cooling | Water cooled |
| Injection system | Common rail |
| Fuel pump type | HPCR high pressure common rail |
| Governor | Electronic |
| Operating voltage | 24V DC |
| Battery capacity | 2 ? 120 Ah |
| Fuel consumption at full load | 81.6 L/hr |
| Fuel consumption at 75% load | 64.6 L/hr |
| Fuel consumption at 50% load | 46.9 L/hr |
| Oil capacity | 75.33 L |
| Coolant capacity | 23.1 L engine only / 62.1 L total |
| Cooling fan air flow | 543.6 m?/min |
| Engine air intake | 28.7 m?/min |
| Exhaust gas flow | 35.2 kg/min |
| Alternator | Aksa AK 5300 |
| Alternator power | 375 kVA |
| Alternator type | 4 pole, brushless |
| AVR | SX440 |
| Voltage regulation | 1% |
| Insulation class | Class H |
| Protection class | IP22 |
| Controller | DSE7320 |
| Canopy | MS 70 CK |
| Open set dimensions | 3104 ? 1550 ? 2291 mm |
| Open set dry weight | 3250 kg |
| Open set fuel tank capacity | 700 L |
| Canopy dimensions | 4463 ? 1606 ? 2559 mm |
| Canopy dry weight | 4150 kg |
| Canopy fuel tank capacity | 700 L |
