Product Overview

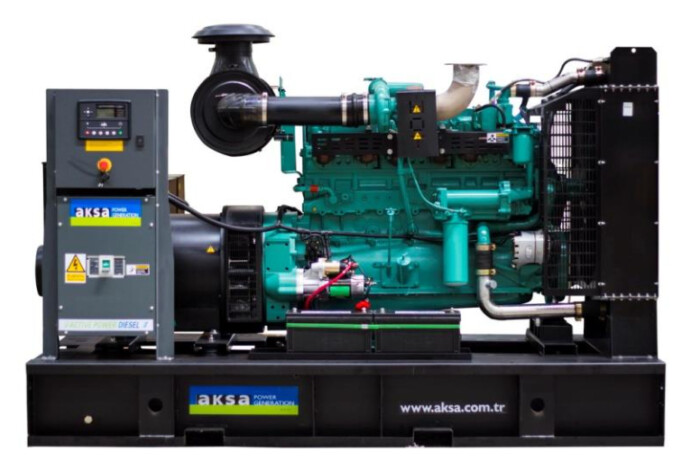

The AKSA APD310C is a diesel generating set built for dependable standby and prime power use across commercial, industrial, agricultural, construction, workshop, and backup power applications. It delivers 310 kVA / 248 kW standby power and 279 kVA / 223.2 kW prime power, making it suitable for sites that require stable 50Hz, 3-phase electrical supply.
Powered by a Cummins 6LTAA9.5-G3 diesel engine, the APD310C uses a 6-cylinder, 9.5-litre, turbocharged and charge-air-cooled diesel engine running at 1500rpm. The engine features direct fuel injection, electronic governor control, replaceable fuel, oil and air filters, water cooling, and a 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with a revolving field design, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, and solid-state automatic voltage regulation. This helps provide stable output for general electrical loads and sensitive equipment used in standby and prime power applications.
Control and protection are handled by the DSE7320 control panel, which monitors generator voltage, current, frequency, battery voltage, engine oil pressure, coolant temperature, running hours, mains supply status, operating status, alarms, and shutdown conditions. The unit includes an integrated base fuel tank and is available in open or sound-attenuated canopy configuration for different installation requirements.
Key features
- 310 kVA / 248 kW standby power
- 279 kVA / 223.2 kW prime power
- Cummins 6LTAA9.5-G3 diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 9.5-litre diesel engine
- Turbocharged and charge-air-cooled
- Water-cooled engine design
- Direct injection fuel system
- Electronic governor system
- Brushless single-bearing alternator
- Self-excited and self-regulating alternator system
- Solid-state automatic voltage regulator
- Class H alternator insulation
- IP21 standard alternator protection
- DSE7320 control panel
- Integrated base fuel tank
- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, commercial, agricultural, site, and industrial power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD310C |
| Fuel type | Diesel |
| Standby power | 310 kVA / 248 kW |
| Prime power | 279 kVA / 223.2 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | Cummins 6LTAA9.5-G3 |
| Engine speed | 1500rpm |
| Engine power output | 280 kWm / 375 HP |
| Cylinders | 6 in-line |
| Displacement | 9.5 litres |
| Bore x stroke | 116.5 ? 148 mm |
| Compression ratio | 16.6:1 |
| Aspiration | Turbocharged and charge-air-cooled |
| Cooling | Water cooled |
| Governor | Electronic |
| Fuel consumption at full load | 58 L/hr |
| Fuel tank capacity | 470 L |
| Oil capacity | 32.4 L |
| Coolant capacity | 65.1 L |
| Radiator cooling air | 550 m?/min |
| Engine air intake | 17.88 m?/min |
| Exhaust gas flow | 24 kg/min |
| Alternator type | Brushless single bearing, revolving field |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Insulation class | Class H |
| Protection class | IP21 standard |
| Controller | DSE7320 |
| Open set dimensions | 2840 ? 1300 ? 1845 mm |
| Open set dry weight | 2660 kg |
| Sound-attenuated dimensions | 3963 ? 1356 ? 2171 mm |
| Sound-attenuated dry weight | 3350 kg |
