Product Overview

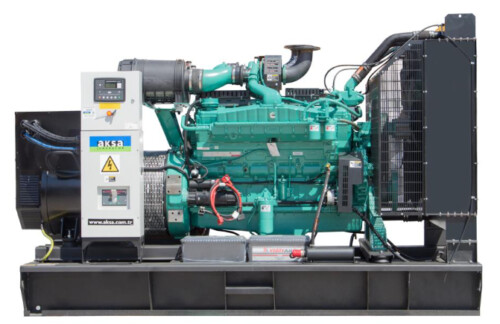

The AKSA APD475C is a diesel generating set built for dependable standby and prime power use across commercial, industrial, agricultural, construction, workshop, and backup power applications. It delivers 475 kVA / 380 kW standby power and 440 kVA / 352 kW prime power, making it suitable for sites that require stable 50Hz, 3-phase electrical supply.
Powered by a Cummins 6ZTAA13-G2 diesel engine, the APD475C uses a 6-cylinder, 13-litre, turbocharged and charge-air-cooled diesel engine running at 1500rpm. The engine features direct fuel injection, electronic governor control, dry-type air filtration, water cooling, and a 24V DC electrical starting system.
The generator is supplied with an Aksa AK 6371 alternator, offering brushless operation, Class H insulation, automatic voltage regulation, and stable output for general electrical loads and sensitive equipment used in standby and prime power applications.
Control and protection are handled by the DSE7320 control panel, which monitors generator voltage, current, frequency, battery voltage, engine oil pressure, coolant temperature, running hours, operating status, alarms, and shutdown conditions. The unit includes an integrated base fuel tank and is available in open or canopy configuration for different installation requirements.
Key features
- 475 kVA / 380 kW standby power
- 440 kVA / 352 kW prime power
- Cummins 6ZTAA13-G2 diesel engine
- 400/231V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 13-litre diesel engine
- Turbocharged and charge-air-cooled
- Water-cooled engine design
- Direct injection fuel system
- Electronic governor system
- Aksa AK 6371 alternator
- Brushless alternator design
- Class H alternator insulation
- DSE7320 control panel
- Integrated base fuel tank
- Open or MS 70 CK canopy configuration
- Suitable for standby, prime, commercial, agricultural, site, and industrial power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD475C |
| Fuel type | Diesel |
| Standby power | 475 kVA / 380 kW |
| Prime power | 440 kVA / 352 kW |
| Voltage | 400/231V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Standby current | 686 A |
| Engine | Cummins 6ZTAA13-G2 |
| Engine speed | 1500rpm |
| Engine power output | 415 kWm / 557 HP |
| Cylinders | 6 in-line |
| Displacement | 13 litres |
| Bore x stroke | 130 ? 163 mm |
| Compression ratio | 17:1 |
| Aspiration | Turbocharged and charge-air-cooled |
| Cooling | Water cooled |
| Governor | Electronic |
| Fuel consumption at full load | 89.1 L/hr |
| Fuel tank capacity | 700 L |
| Alternator | Aksa AK 6371 |
| Alternator type | Brushless |
| Insulation class | Class H |
| Controller | DSE7320 |
| Canopy | MS 70 CK |
