Product Overview

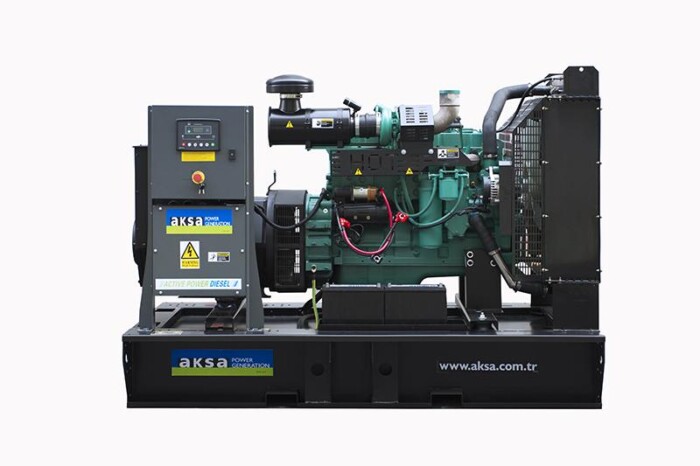

The AKSA APD200C is a diesel generating set built for dependable standby and prime power use across commercial, industrial, agricultural, construction, workshop, and backup power applications. It delivers 200 kVA / 160 kW standby power and 180 kVA / 144 kW prime power, making it suitable for sites that require stable 50Hz, 3-phase electrical supply.
Powered by a Cummins 6CTA8.3-G2 diesel engine, the APD200C uses a 6-cylinder, 8.3-litre, turbocharged and aftercooled, water-cooled diesel engine running at 1500rpm. The engine features direct fuel injection, electronic governor control, dry-type air filtration, and a 24V DC electrical starting system.
The generator is supplied with an Aksa AK 4150 alternator, offering brushless operation, Class H insulation, IP22 protection, AS460 AVR, and 1.5% voltage regulation. This helps provide stable output for general electrical loads and sensitive equipment used in standby and prime power applications.
Control and protection are handled by the DSE6120 control panel, which monitors generator voltage, current, frequency, battery voltage, engine oil pressure, coolant temperature, running hours, operating status, alarms, and shutdown conditions. The unit includes an integrated base fuel tank and is available in open or canopy configuration for different installation requirements.
Key features
- 200 kVA / 160 kW standby power
- 180 kVA / 144 kW prime power
- Cummins 6CTA8.3-G2 diesel engine
- 400/231V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 8.3-litre diesel engine
- Turbocharged and aftercooled
- Water-cooled engine design
- Direct injection fuel system
- Electronic governor system
- Aksa AK 4150 alternator
- AS460 automatic voltage regulator
- Class H alternator insulation
- IP22 alternator protection
- DSE6120 control panel
- Integrated base fuel tank
- Open or canopy configuration
- Suitable for standby, prime, commercial, agricultural, site, and industrial power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD200C |
| Fuel type | Diesel |
| Standby power | 200 kVA / 160 kW |
| Prime power | 180 kVA / 144 kW |
| Voltage | 400/231V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Standby current | 289 A |
| Engine | Cummins 6CTA8.3-G2 |
| Engine speed | 1500rpm |
| Cylinders | 6 in-line |
| Displacement | 8.3 litres |
| Bore x stroke | 114 ? 135 mm |
| Compression ratio | 17.3:1 |
| Aspiration | Turbocharged and aftercooled |
| Cooling | Water cooled |
| Governor | Electronic |
| Fuel consumption at full load | 42 L/hr |
| Fuel consumption at 75% load | 31 L/hr |
| Fuel consumption at 50% load | 21 L/hr |
| Oil capacity | 16.6 L |
| Coolant capacity | 12.3 L engine only / 41.3 L total |
| Alternator | Aksa AK 4150 |
| Alternator type | Brushless |
| AVR | AS460 |
| Voltage regulation | 1.5% |
| Insulation class | Class H |
| Protection class | IP22 |
| Controller | DSE6120 |
| Canopy | AK 49 |
| Noise level | 85 dB(A) @ 1m / 75.5 dB(A) @ 7m |
| Open set dimensions | 2600 ? 1250 ? 1684 mm |
| Open set dry weight | 1880 kg |
| Open set fuel tank capacity | 473 L |
| Canopy dimensions | 3404 ? 1136 ? 2020 mm |
| Canopy dry weight | 2140 kg |
| Canopy fuel tank capacity | 340 L |
