Product Overview

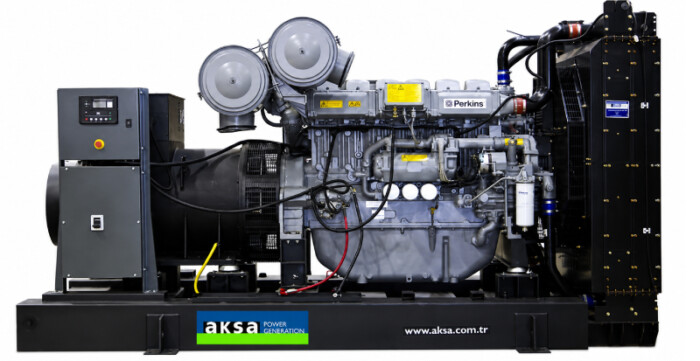

The AKSA APD900P is a high-capacity diesel generating set built for dependable standby and prime power use across commercial premises, farms, workshops, construction sites, industrial units, infrastructure facilities, and backup power applications. It delivers 900 kVA / 720 kW standby power and 810 kVA / 648 kW prime power, making it suitable for installations that require stable 400/230V, 50Hz, 3-phase electrical supply.
Powered by a Perkins 4006-23TAG3A diesel engine, the APD900P uses a 6-cylinder, 22.921-litre, turbocharged, water-cooled diesel engine running at 1500rpm. The engine features direct fuel injection, electronic governor control, replaceable fuel, oil and dry element air filters, cooling radiator and fan, starter battery system, flexible fuel connections, and a 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with revolving field design, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, and direct-drive centrifugal blower cooling. This helps provide stable electrical output for high-capacity standby and prime power loads.
The APD900P is available in open, canopy, soundproof canopy, and on-road trailer configuration depending on installation requirements. Every generating set is factory tested, including full-load testing and checks for control and safety shutdown functions before delivery.
Key features
- 900 kVA / 720 kW standby power
- 810 kVA / 648 kW prime power
- Perkins 4006-23TAG3A diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 22.921-litre diesel engine
- Turbocharged and water cooled
- Direct injection fuel system
- Electronic governor system
- Brushless single-bearing alternator
- Self-excited and self-regulating alternator system
- Class H alternator insulation
- Integrated fuel tank
- Open, canopy, soundproof canopy, or on-road trailer configuration
- Suitable for standby, prime, commercial, agricultural, workshop, construction, industrial, infrastructure, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD900P |
| Fuel type | Diesel |
| Standby power | 900 kVA / 720 kW |
| Prime power | 810 kVA / 648 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | Perkins 4006-23TAG3A |
| Engine speed | 1500rpm |
| Engine power output | 786 kWm / 1054 HP |
| Cylinders | 6 vertical in-line |
| Displacement | 22.921 litres |
| Bore x stroke | 160 ? 190 mm |
| Compression ratio | 13.6:1 |
| Aspiration | Turbocharged |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Electronic |
| Starting system | 12/24V DC starter and charge alternator |
| Fuel consumption at full load | 172 L/hr |
| Fuel tank capacity | 1100 L open / 1100 L canopy |
| Oil capacity | 113.4 L |
| Coolant capacity | 120 L |
| Radiator cooling air | 870 m?/min |
| Engine air intake | 73 m?/min |
| Exhaust gas flow | 193 m?/min |
| Alternator type | Brushless single bearing, revolving field |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Alternator cooling | Direct drive centrifugal blower fan |
| Insulation class | Class H |
| Temperature rise | 125 – 163?C continuous |
| AC waveform distortion | No load < 1.5%; non-distorting balanced linear load < 5% |
| Telephone influence factor | < 50 per NEMA MG1-22.43 |
| Telephone harmonic factor | < 2% |
| Configuration options | Open, canopy, soundproof canopy, or on-road trailer |
