Product Overview

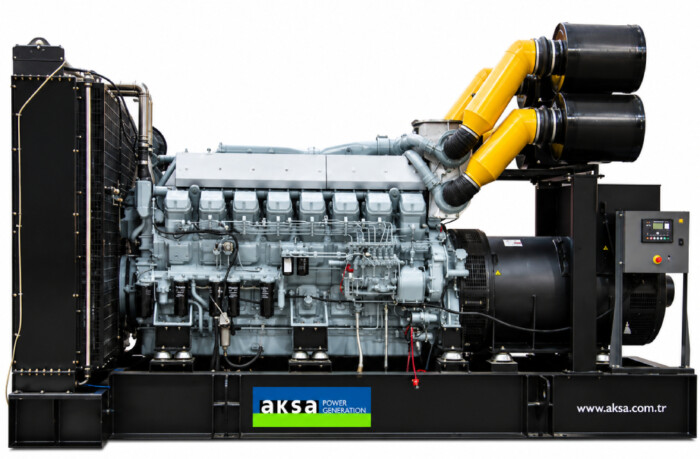

The AKSA APD2100M is a high-capacity diesel generating set built for dependable standby and prime power use across commercial premises, industrial sites, infrastructure facilities, construction projects, agricultural operations, workshops, data centres, and critical backup power applications. It delivers 2100 kVA / 1680 kW standby power and 1875 kVA / 1500 kW prime power, making it suitable for installations that require stable 400/230V, 50Hz, 3-phase electrical supply.
Powered by a Mitsubishi S16R-PTA2 diesel engine, the APD2100M uses a 16-cylinder, 65.37-litre, V-type diesel engine running at 1500rpm. The engine is turbocharged and aftercooled, with direct injection, electronic governor control, water cooling, replaceable fuel, oil and dry element air filters, cooling radiator and fan, starter battery system, flexible fuel connection hoses, industrial exhaust silencer, steel bellows, and a 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with revolving field design, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, solid-state automatic voltage regulation, and direct-drive centrifugal blower cooling. This supports stable electrical output for high-capacity standby and prime power loads.

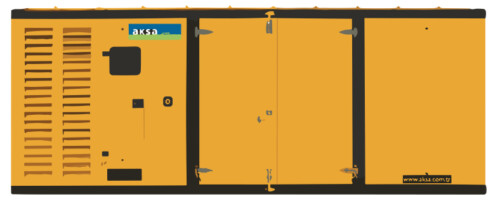

Control and protection are handled by the DSE7320 control panel. The controller monitors mains supply, generator voltage, current, frequency, engine oil pressure, coolant temperature, battery voltage, running hours, generator kVA, kWh, kW percentage, power factor, alarms, and shutdown conditions. The APD2100M is available in open or sound-attenuated canopy configuration depending on installation requirements.
Key features
- 2100 kVA / 1680 kW standby power
- 1875 kVA / 1500 kW prime power
- Mitsubishi S16R-PTA2 diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 16-cylinder, 65.37-litre V-type diesel engine
- Turbocharged and aftercooled
- Water-cooled engine design
- Direct injection fuel system
- Electronic governor system
- Brushless single-bearing alternator
- Self-excited and self-regulating alternator system
- Solid-state automatic voltage regulator
- Class H alternator insulation
- IP21 standard alternator protection; IP22/IP23 available
- DSE7320 control panel
- Integrated canopy fuel tank
- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, commercial, industrial, infrastructure, agricultural, data centre, workshop, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD2100M |
| Fuel type | Diesel |
| Standby power | 2100 kVA / 1680 kW |
| Prime power | 1875 kVA / 1500 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | Mitsubishi S16R-PTA2 |
| Engine speed | 1500rpm |
| Engine power output | 1790 kWm / 2399 HP |
| Cylinders | 16 V-type |
| Displacement | 65.37 litres |
| Bore x stroke | 170 ? 180 mm |
| Compression ratio | 13.5:1 |
| Aspiration | Turbocharged and aftercooled |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Electronic |
| Starting system | 12/24V DC starter and charge alternator |
| Fuel consumption at full load | 398.7 L/hr |
| Fuel tank capacity | Open: N/A / Canopy: 2200 L |
| Oil capacity | 230 L |
| Coolant capacity | 445 L |
| Radiator cooling air | 2040 m?/min |
| Engine air intake | 143 m?/min |
| Exhaust gas flow | 379 m?/min |
| Alternator type | Brushless single bearing, revolving field |
| Alternator poles | 4 poles |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Alternator cooling | Direct drive centrifugal blower fan |
| Insulation class | Class H |
| Temperature rise | 125 – 163?C continuous |
| Protection class | IP21 standard; IP22/IP23 available |
| AC waveform distortion | No load < 1.5%; non-distorting balanced linear load < 5% |
| Telephone influence factor | < 50 per NEMA MG1-22.43 |
| Telephone harmonic factor | < 2% |
| Controller | DSE7320 |
| Open set dimensions | 5218 ? 2245 ? 2960 mm |
| Open set dry weight | 13100 kg |
| Sound-attenuated dimensions | 9000 ? 2800 ? 4394 mm |
| Sound-attenuated dry weight | 16500 kg |
| Configuration options | Open, canopy, soundproof canopy, or on-road trailer |
