Product Overview

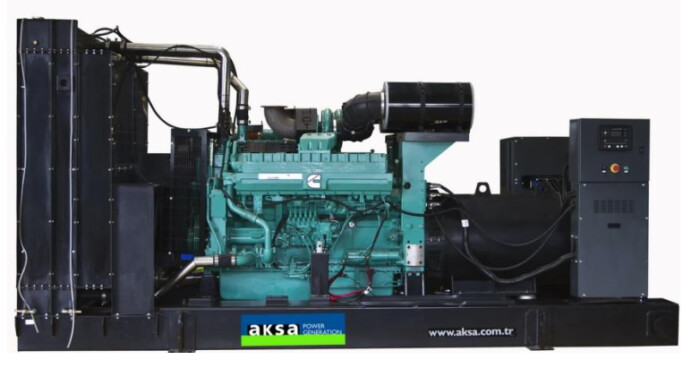

The AKSA AC880 is a heavy-duty diesel generating set built for dependable standby and prime power use across commercial, industrial, infrastructure, construction, agricultural, and backup power applications. It delivers 880 kVA / 704 kW standby power and 800 kVA / 640 kW prime power, making it suitable for sites that require high-capacity 50Hz, 3-phase electrical supply.
Powered by a Cummins QSK23G3 diesel engine, the AC880 uses a 6-cylinder, 23.15-litre, turbocharged and air-to-air aftercooled diesel engine running at 1500rpm. The engine features direct fuel injection, GCS governor control, replaceable fuel, oil and dry element air filters, water cooling, radiator and fan assembly, and 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with revolving field design, 4-pole construction, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, solid-state automatic voltage regulation, and direct-drive centrifugal blower cooling. This helps provide stable output for large standby and prime power loads.
Control and protection are handled by the DSE7320 control panel, mounted on the genset base frame. The controller monitors generator voltage, current, frequency, engine oil pressure, coolant temperature, battery voltage, running hours, mains supply, operating status, alarms, and shutdown conditions. The unit is available in open or sound-attenuated canopy configuration for different installation requirements.
Key features
- 880 kVA / 704 kW standby power
- 800 kVA / 640 kW prime power
- Cummins QSK23G3 diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 23.15-litre diesel engine
- Turbocharged and air-to-air aftercooled
- Water-cooled engine design
- Direct injection fuel system
- GCS governor system
- Brushless single-bearing alternator
- 4-pole alternator construction
- Self-excited and self-regulating alternator system
- Solid-state automatic voltage regulator
- Class H alternator insulation
- IP21 standard alternator protection
- DSE7320 control panel
- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, commercial, industrial, infrastructure, agricultural, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | AC880 |
| Fuel type | Diesel |
| Standby power | 880 kVA / 704 kW |
| Prime power | 800 kVA / 640 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | Cummins QSK23G3 |
| Engine speed | 1500rpm |
| Engine power output | 768 kWm / 1030 HP |
| Cylinders | 6 in-line |
| Displacement | 23.15 litres |
| Bore x stroke | 170 ? 170 mm |
| Compression ratio | 16:1 |
| Aspiration | Turbocharged and air-to-air aftercooled |
| Cooling | Water cooled |
| Governor | GCS |
| Fuel consumption at full load | 161 L/hr |
| Fuel tank capacity | 1400 L open / 1100 L canopy |
| Oil capacity | 103 L |
| Coolant capacity | 122.6 L |
| Radiator cooling air | 1080 m?/min |
| Engine air intake | 53.3 m?/min |
| Exhaust gas flow | 147.8 m?/min |
| Alternator type | Brushless single bearing, revolving field |
| Alternator poles | 4 poles |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Alternator cooling | Direct drive centrifugal blower fan |
| Insulation class | Class H |
| Protection class | IP21 standard; IP22/IP23 available |
| AC waveform distortion | No load < 1.5%; balanced linear load < 5% |
| Telephone influence factor | < 50 per NEMA MG1-22.43 |
| Telephone harmonic factor | < 2% |
| Controller | DSE7320 |
| Open set dimensions | 4124 ? 2000 ? 2261 mm |
| Open set dry weight | 6200 kg |
| Sound-attenuated dimensions | 6498 ? 2293 ? 2353 mm |
| Sound-attenuated dry weight | 8800 kg |
