Product Overview

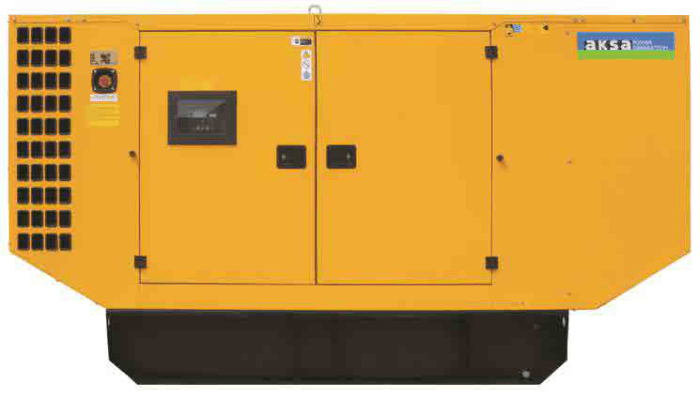

The AKSA APD145C is a diesel generating set built for dependable standby and prime power use across commercial, industrial, agricultural, construction, workshop, and backup power applications. It delivers 145 kVA / 116 kW standby power and 132 kVA / 105.6 kW prime power, making it suitable for sites that require stable 50Hz, 3-phase electrical supply.
Powered by a Cummins 6BTAA5.9-G2 diesel engine, the APD145C uses a 6-cylinder, 5.9-litre, turbocharged and charge-air-cooled diesel engine running at 1500rpm. The engine features direct fuel injection, electronic governor control, dry-type air filtration, water cooling, and a 24V DC electrical starting system.
The generator is supplied with an Aksa AK 4110 alternator, offering brushless operation, Class H insulation, IP22 protection, AS460 AVR, and 1.5% voltage regulation. This helps provide stable output for general electrical loads and sensitive equipment used in standby and prime power applications.
Control and protection are handled by the DSE6120 control panel, which monitors generator voltage, current, frequency, battery voltage, engine oil pressure, coolant temperature, running hours, operating status, alarms, and shutdown conditions. The unit includes an integrated base fuel tank and is available in open or canopy configuration for different installation requirements.
Key features
- 145 kVA / 116 kW standby power
- 132 kVA / 105.6 kW prime power
- Cummins 6BTAA5.9-G2 diesel engine
- 400/231V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 5.9-litre diesel engine
- Turbocharged and charge-air-cooled
- Water-cooled engine design
- Direct injection fuel system
- Electronic governor system
- Aksa AK 4110 alternator
- Brushless alternator design
- AS460 automatic voltage regulator
- Class H alternator insulation
- IP22 alternator protection
- DSE6120 control panel
- Integrated base fuel tank
- Open or canopy configuration
- Suitable for standby, prime, commercial, agricultural, site, and industrial power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD145C |
| Fuel type | Diesel |
| Standby power | 145 kVA / 116 kW |
| Prime power | 132 kVA / 105.6 kW |
| Voltage | 400/231V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Standby current | 209.30 A |
| Engine | Cummins 6BTAA5.9-G2 |
| Engine speed | 1500rpm |
| Cylinders | 6 in-line |
| Displacement | 5.9 litres |
| Bore x stroke | 102 ? 120 mm |
| Compression ratio | 17.3:1 |
| Aspiration | Turbocharged and charge-air-cooled |
| Cooling | Water cooled |
| Governor | Electronic |
| Fuel consumption at full load | 30 L/hr |
| Fuel consumption at 75% load | 23 L/hr |
| Fuel consumption at 50% load | 16 L/hr |
| Oil capacity | 16.4 L |
| Coolant capacity | 10 L engine only / 54 L with radiator |
| Alternator | Aksa AK 4110 |
| Alternator type | Brushless |
| AVR | AS460 |
| Voltage regulation | 1.5% |
| Insulation class | Class H |
| Protection class | IP22 |
| Controller | DSE6120 |
| Canopy | AK 49 |
| Open set dimensions | 2290 ? 1000 ? 1474 mm |
| Open set dry weight | 1360 kg |
| Open set fuel tank capacity | 195 L |
| Canopy dimensions | 3404 ? 1136 ? 2020 mm |
| Canopy dry weight | 1780 kg |
| Canopy fuel tank capacity | 340 L |
