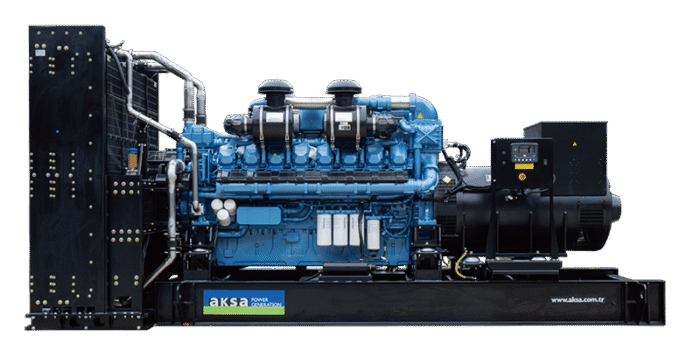

BAUDOUIN APD2500BD Diesel Generator – 50Hz
The Aksa APD2500BD Diesel Generator is a 2500 kVA standby / 2250 kVA prime power generator powered by a heavy-duty Baudouin 20M33G2500/5 diesel engine. Designed for 400/231V, 50Hz three-phase power, it features ECU governing, Aksa AK 72000 brushless alternator technology, DSE 7320 AMF control, and robust construction for demanding commercial and industrial standby power applications.
Brand: BAUDOUIN
Aksa APD2500BD Diesel Generator ? 2500 kVA Standby Power
The Aksa APD2500BD Diesel Generator is a high-capacity diesel generating set designed for demanding standby, prime, and continuous-duty power applications. Powered by a heavy-duty Baudouin 20M33G2500/5 diesel engine, this generator provides reliable 400/231V, 50Hz three-phase power for large industrial, commercial, infrastructure, and mission-critical environments.
With a standby rating of 2500 kVA / 2000 kW and a prime rating of 2250 kVA / 1800 kW, the APD2500BD is suitable for large sites requiring dependable high-output diesel backup power.
Key Features
- 2500 kVA standby power and 2250 kVA prime power
- Powered by a Baudouin 20M33G2500/5 diesel engine
- 20-cylinder V-type engine configuration
- Turbocharged and aftercooled air-to-water engine design
- ECU governor system for precise engine control
- High Pressure Common Rail fuel system
- Aksa AK 72000 brushless alternator
- Class H insulation system
- MX341 Automatic Voltage Regulator
- Deep Sea Electronics DSE 7320 AMF control module
- Designed for 400/231V, 50Hz, 3 phase output
- Available in open type or AK 100 – 2500BD canopy configuration
Engine Specifications
| Engine Brand | Baudouin |
|---|---|
| Engine Model | 20M33G2500/5 |
| Engine Configuration | 20-cylinder, V-type |
| Engine Speed | 1500 rpm |
| Aspiration & Cooling | Turbocharged and aftercooled, air-to-water |
| Total Displacement | 65.4 litres |
| Bore x Stroke | 150 x 185 mm |
| Compression Ratio | 15:1 |
| Standby Engine Power | 2210 kW / 2964 HP |
| Governor System | ECU |
| Fuel Type | Diesel |
| Injection System | Direct injection |
| Fuel Pump Type | HPCR High Pressure Common Rail |
| Operating Voltage | 24 Vdc |
| Battery Capacity | 4 x 200 Ah |
| Charge Alternator | 55 A |
| Oil Capacity | 235 litres |
| Coolant Capacity | 140 litres, engine only |
| Cooling Method | Water cooled |
| Cooling Fan Air Flow | 2040 m?/min |
| Air Filter | Dry type |
| Fuel Consumption at 100% Prime Load | 466.4 L/hr |
| Fuel Consumption at 75% Prime Load | 360.7 L/hr |
| Fuel Consumption at 50% Prime Load | 240.5 L/hr |
| Block Heater | 2 x 3000 W |
Power Ratings
| Voltage | Standby Power | Prime Power | Standby Current |
|---|---|---|---|
| 400/231 V | 2500 kVA / 2000 kW | 2250 kVA / 1800 kW | 3608.55 A |
| Frequency | 50 Hz | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8 | ||
Alternator Specifications
| Alternator Manufacturer | Aksa |
|---|---|
| Alternator Model | AK 72000 |
| Alternator Power | 2500 kVA |
| Design | Brushless |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Phase | 3 Phase |
| AVR | MX341 |
| Voltage Regulation | ?1% |
| Insulation System | Class H |
| Protection | IP22 |
| Rated Power Factor | 0.8 |
| Alternator Weight | 4760 kg |
| Cooling Air | 161.4 m?/min |
Control System
The APD2500BD is equipped with an Auto Mains Failure control panel featuring the DSE 7320 control module. This control system monitors mains supply and generator operation, automatically starting and stopping the generating set when required.
- DSE 7320 Auto Mains Failure control module
- Microprocessor-based generator control system
- Main status and instrumentation display
- Menu navigation buttons
- Close mains and close generator buttons
- Status LEDs and alarm LEDs
- Operation selecting buttons
- Static battery charger
- Fuses for control circuits
- Emergency stop push button
Monitoring Functions
- Generator voltage monitoring
- Generator current monitoring
- Generator frequency monitoring
- Engine speed monitoring
- Engine oil pressure monitoring
- Coolant temperature monitoring
- Battery voltage monitoring
- Running hours display
- Mains supply monitoring
- Generator output and load monitoring
- kW, kVA and power factor monitoring
Protection Features
- Low oil pressure protection
- High coolant temperature protection
- Over speed and under speed protection
- Under/over generator voltage protection
- Under/over generator frequency protection
- Battery voltage warning
- Charge failure warning
- Fail to start protection
- Fail to stop warning
- Emergency stop shutdown
- Generator over-current protection
- kW overload protection
- Earth fault protection
- Electrical trip functions
Dimensions and Fuel Tank Capacity
| Open Type Dimensions | 6760 x 2240 x 2842 mm |
|---|---|
| Canopy Model | AK 100 – 2500BD |
| Canopy Dimensions | 9633 x 2800 x 3457 mm |
| Canopy Fuel Tank Capacity | 2200 litres |
Standard Specifications
- Heavy-duty Baudouin diesel engine
- Water-cooled engine system
- Turbocharged and aftercooled design
- Direct injection fuel system
- High Pressure Common Rail fuel pump
- ECU governor system
- 24V DC electrical system
- Dry type air filter
- Brushless Aksa alternator
- Control panel in sheet steel enclosure
- Base frame-mounted generator construction
- Designed for stationary standby and prime power applications
Applications
The Aksa APD2500BD is suitable for large industrial plants, data centres, hospitals, infrastructure projects, utilities, commercial complexes, telecom facilities, manufacturing sites, and emergency backup systems where dependable high-output diesel power is required.
Optional Equipment
- Fuel-water separator filter
- Oil heater
- Anti-condensation heater
- Oversized alternator
- PMG excitation and AVR
- Main line circuit breaker
- Galvanized canopy coating
- ISO container option
- Marine grade paint
- Automatic synchronising and power control system
- Multi-generator parallel system
- Parallel system with mains
- Transition synchronisation with mains
- Alarm output relays
- Earth fault protection
- Remote relay output
- Remote communication with modem
- Charge ammeter
- Three or four pole contactor transfer panel
- Three or four pole motor-operated circuit breaker
- Main fuel tank
- Automatic or manual fuel filling system
- Electrical or manual oil drain pump
- Low and high fuel level alarm
- Inlet and outlet motorised louvers
- Inlet and outlet acoustic baffles
- Maintenance tool kit
- 1500 / 3000 hours maintenance kit
- Supplied with oil and coolant option
- Residential silencer
- Spark arrester silencer
- Critical silencer
- Catalytic converter
The Aksa APD2500BD Diesel Generator is built for dependable high-capacity power generation, combining Baudouin 20-cylinder diesel engine technology, Aksa AK 72000 alternator performance, DSE 7320 AMF control, and durable industrial construction for demanding standby power requirements.
