BAUDOUIN APD1250BD Diesel Generator – 50Hz

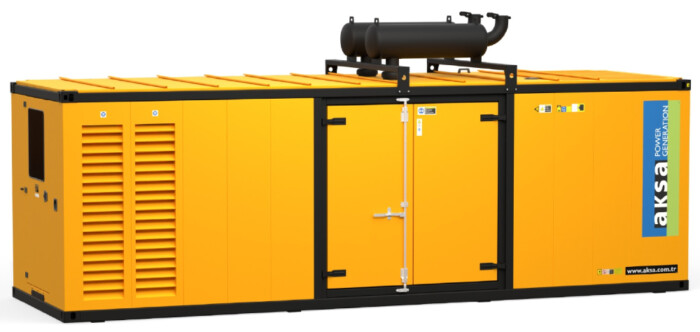

Aksa APD1250BD Diesel Generator ? 1250 kVA Standby Power

The Aksa APD1250BD Diesel Generator is a high-capacity diesel generating set designed for reliable standby and prime power applications. Powered by a Baudouin 12M33G1250/5 diesel engine, this generator provides dependable 400/230V, 50Hz three-phase power for commercial, industrial, infrastructure, and mission-critical applications.

With a standby rating of 1250 kVA / 1000 kW and a prime rating of 1125 kVA / 900 kW, the APD1250BD is suitable for sites requiring dependable high-output diesel backup or prime power.

Key Features

• 1250 kVA standby power and 1125 kVA prime power
• Powered by a Baudouin 12M33G1250/5 diesel engine
• 12-cylinder V-type engine configuration
• Turbocharged and aftercooled engine design
• Electronic governor system for stable performance
• Brushless, single-bearing alternator
• Class H insulation system
• Self-excited and self-regulating alternator
• Solid state Automatic Voltage Regulator
• Deep Sea Electronics DSE 7320 AMF control module
• Designed for 400/230V, 50Hz, 3 phase output
• Available in open type or sound attenuated canopy configuration

Engine Specifications

Power Ratings

Alternator Features

• Brushless, single-bearing alternator design
• Revolving field construction
• Flexible disc rotor system
• 4-pole construction
• Class H insulation system
• Self-excited and self-regulating system
• Solid state Automatic Voltage Regulator
• 2/3 pitch stator winding for improved harmonics
• Direct drive centrifugal blower fan cooling
• Standard degree of protection IP22
• IP23 protection available as an option
• No-load waveform total harmonic distortion below 1.5%
• Balanced linear load waveform distortion below 5%
• Telephone Influence Factor below 50 per NEMA MG1-22.43
• Telephone Harmonic Factor below 2%
• Impregnation with tropicalized epoxy varnish

Control System

The APD1250BD is equipped with an Auto Mains Failure control panel featuring the DSE 7320 control module. This system monitors the mains supply and generator operation, automatically starting and stopping the generating set when required.

• Microprocessor-based AMF control module
• Automatic control of mains and generator contactors
• Engine performance monitoring
• AC power output monitoring
• LED alarm indication
• Front panel configuration of timers and alarm trip points
• Easy push button control
• Static battery charger
• Emergency stop push button
• Power outlet terminal board mounted on the generator base frame

Monitoring Functions

• Generator voltage monitoring, L-L and L-N
• Generator current monitoring for L1, L2 and L3
• Generator frequency monitoring
• Generator kVA and kWh monitoring
• Generator kW as percentage of rated kW setting
• Generator power factor monitoring
• Engine oil pressure monitoring
• Engine temperature monitoring
• Plant battery voltage monitoring
• Engine running hours display
• Mains voltage monitoring, phase-to-phase and phase-to-neutral

Protection Features

• Over speed and under speed protection
• Low and high battery voltage alarm
• Start and stop failure protection
• Charge failure alarm
• Over current protection
• Under/over generator voltage protection
• Low oil pressure alarm
• Emergency stop protection
• High engine temperature alarm
• kW overload protection
• Unbalanced load protection
• Independent earth fault trip

Dimensions and Weight

Standard Specifications

• Heavy-duty Baudouin diesel engine
• Four-stroke, water-cooled engine
• Direct injection fuel system
• Electronic governor system
• 24V DC starter and charge alternator
• Replaceable fuel filter, oil filter and dry element air filter
• Cooling radiator and fan
• Starter battery with lead acid, rack and cables
• Flexible fuel connection hoses
• Manual oil sump drain valve
• Industrial capacity exhaust silencer and steel bellows
• Jacket water heater for automatic models
• Operation manuals and circuit diagram documents
• Heavy-duty fabricated steel base frame
• Anti-vibration pads between engine, alternator, and base frame
• Dial type fuel gauge and drain plug on the fuel tank

Canopy Features

• Modular canopy construction
• Weld-free canopy assembly
• Doors on each side for maintenance access
• Electrostatic polyester powder paint finish
• Exhaust silencer protected against environmental influences
• Thermally insulated engine exhaust system
• External emergency stop push button
• Designed for easy lifting and moving
• Designed for easy maintenance and operation

Applications

The Aksa APD1250BD is suitable for commercial buildings, industrial facilities, manufacturing plants, warehouses, healthcare facilities, telecom infrastructure, data centres, construction sites, utilities, and emergency backup power systems where reliable high-capacity diesel standby or prime power is required.

Optional Equipment

• Oil heater
• 3/4 pole output circuit breaker
• Anti-condensation heater
• Bulk fuel tank
• Automatic filling system
• Fuel-water separator filter
• Low fuel level alarm
• Residential silencer
• Enclosure or sound proof canopy
• Trailer option
• Manual oil drain pump
• Maintenance tool kit
• Charge ammeter
• 3-pole transfer switch
• 4-pole transfer switch
• Earth fault protection

The Aksa APD1250BD Diesel Generator is built for reliable high-capacity power generation, combining Baudouin 12-cylinder diesel engine technology, DSE 7320 AMF control, brushless alternator performance, and durable construction for dependable standby and prime power applications.
