BAUDOUIN APD55BD Diesel Generator – 50Hz
The Aksa APD55BD Diesel Generator is a 55 kVA standby / 50 kVA prime power generator powered by a Baudouin 4M06G10D0 diesel engine. Designed for reliable 400/231V, 50Hz three-phase power, it features ECU governing, Aksa AK 340 brushless alternator technology, DSE 6120 AMF control, and compact construction for commercial, residential, and light industrial standby power applications.
Brand: BAUDOUIN
Aksa APD55BD Diesel Generator ? 55 kVA Standby Power
The Aksa APD55BD Diesel Generator is a compact diesel generating set designed for reliable standby and prime power applications. Powered by a Baudouin 4M06G10D0 diesel engine, this generator provides dependable 400/231V, 50Hz three-phase power for residential, commercial, and light industrial use.
With a standby rating of 55 kVA / 44 kW and a prime rating of 50 kVA / 40 kW, the APD55BD is suitable for applications requiring compact, efficient, and dependable backup power.
Key Features
- 55 kVA standby power and 50 kVA prime power
- Powered by a Baudouin 4M06G10D0 diesel engine
- 4-cylinder inline engine configuration
- Turbocharged and air-to-air aftercooled engine design
- ECU governor system for precise engine control
- High Pressure Common Rail fuel system
- Aksa AK 340 brushless alternator
- Class H insulation system
- SX460 Automatic Voltage Regulator
- Deep Sea Electronics DSE 6120 AMF control module
- Designed for 400/231V, 50Hz, 3 phase output

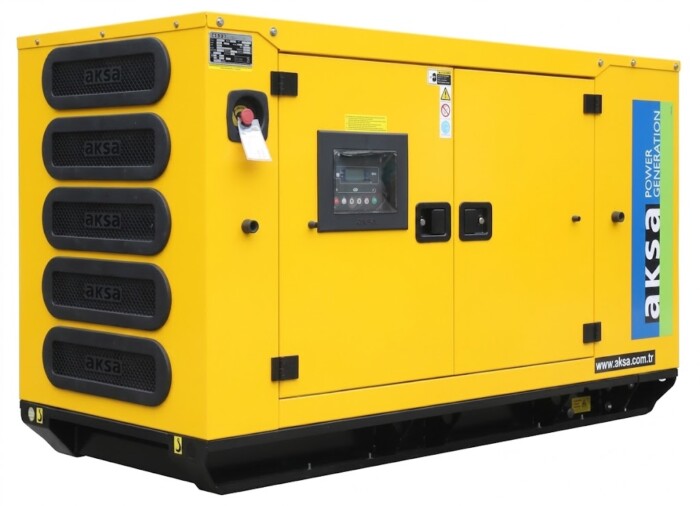

- Available in open type or ACP 5 sound attenuated canopy configuration
Engine Specifications
| Engine Brand | Baudouin |
|---|---|
| Engine Model | 4M06G10D0 |
| Engine Configuration | 4-cylinder, inline |
| Engine Speed | 1500 rpm |
| Aspiration & Cooling | Turbocharged and air-to-air aftercooled |
| Total Displacement | 2.3 litres |
| Bore x Stroke | 89 x 92 mm |
| Compression Ratio | 17.5:1 |
| Standby Engine Power | 53 kW / 71 HP |
| Prime Engine Power | 48 kW / 64 HP |
| Governor System | ECU |
| Injection System | Direct injection |
| Fuel Pump Type | HPCR High Pressure Common Rail |
| Operating Voltage | 12 Vdc |
| Battery Capacity | 1 x 66 Ah |
| Charge Alternator | 50 A |
| Oil Capacity | 9.2 litres |
| Coolant Capacity | 5 litres engine only / 12.9 litres with radiator |
| Cooling Fan Air Flow | 102 m?/min |
| Fuel Consumption at 100% Prime Load | 11.9 L/hr |
| Fuel Consumption at 75% Prime Load | 8.9 L/hr |
| Fuel Consumption at 50% Prime Load | 6 L/hr |
| Block Heater | 1 x 500 W |
Power Ratings
| Voltage | Standby Power | Prime Power | Standby Current |
|---|---|---|---|
| 400/231 V | 55 kVA / 44 kW | 50 kVA / 40 kW | 79.39 A |
| Frequency | 50 Hz | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8 | ||
Alternator Specifications
| Alternator Manufacturer | Aksa |
|---|---|
| Alternator Model | AK 340 |
| Alternator Power | 50 kVA |
| Design | 4-pole, brushless |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Phase | 3 Phase |
| AVR | SX460 |
| Voltage Regulation | ?1.5% |
| Insulation System | Class H |
| Protection | IP22 |
| Rated Power Factor | 0.8 |
| Alternator Weight | 285 kg |
| Cooling Air | 12.96 m?/min |
Control System
The APD55BD is equipped with an Auto Mains Failure control panel featuring the DSE 6120 control module. This system monitors mains supply and generator operation, automatically starting and stopping the generating set when required.
- DSE 6120 Auto Mains Failure control module
- Microprocessor-based generator control system
- Automatic mains and generator monitoring
- Engine performance monitoring
- Generator voltage, current and frequency monitoring
- Battery voltage monitoring
- Running hours display
- Status and alarm indication
- Static battery charger
- Emergency stop push button
Protection Features
- Low oil pressure protection
- High coolant temperature protection
- Over speed and under speed protection
- Under/over generator voltage protection
- Under/over generator frequency protection
- Battery voltage warning
- Charge failure warning
- Fail to start protection
- Fail to stop warning
- Emergency stop shutdown
- Over current protection
- Earth fault protection option
Dimensions and Weight
| Open Type Dimensions | 2015 x 950 x 1315 mm |
|---|---|
| Open Type Dry Weight | 830 kg |
| Sound Attenuated Canopy | ACP 5 |
| Sound Attenuated Type Dimensions | 2282 x 1008 x 1532 mm |
| Sound Attenuated Type Dry Weight | 1050 kg |
| Canopy Fuel Tank Capacity | 180 litres |
Standard Specifications
- Water-cooled Baudouin diesel engine
- Radiator with mechanical fan
- Protective grille for rotating and hot parts
- Electric starter and charge alternator
- Starting battery with lead acid, rack and cables
- Engine coolant heater
- Base frame with integral fuel tank and anti-vibration isolators
- Flexible fuel connection hoses
- Single-bearing Class H alternator
- Industrial exhaust silencer and steel bellows supplied separately for open sets
- Static battery charger
- Application and installation manual
Applications
The Aksa APD55BD is suitable for small commercial buildings, offices, retail premises, telecom sites, workshops, farms, residential developments, light industrial units, and emergency backup power systems where compact diesel standby or prime power is required.
Optional Equipment
- Fuel-water separator filter
- Oil heater
- Anti-condensation heater
- Oversized alternator
- PMG excitation and AVR
- Main line circuit breaker
- Automatic synchronising and power control system
- Transition synchronisation with mains
- Remote annunciator panel
- Remote relay output
- Alarm output relays
- Remote communication with modem
- Earth fault protection
- Charge ammeter
- Three-pole contactor
- Four-pole contactor
- Three or four pole motor-operated circuit breaker
- Main fuel tank
- Automatic or manual fuel filling system
- Manual oil drain pump
- Electrical oil drain pump
- Low and high fuel level alarm
- Residential silencer
- Weather protective or sound attenuated enclosure
- Duct adapter on radiator
- Inlet and outlet motorised louvers
- Inlet and outlet acoustic baffles
- Trailer option
- Maintenance tool kit
- Automatic transfer switch
The Aksa APD55BD Diesel Generator is built for compact and reliable power generation, combining Baudouin diesel engine technology, Aksa AK 340 alternator performance, DSE 6120 AMF control, and durable construction for dependable standby and prime power applications.
