Product Overview

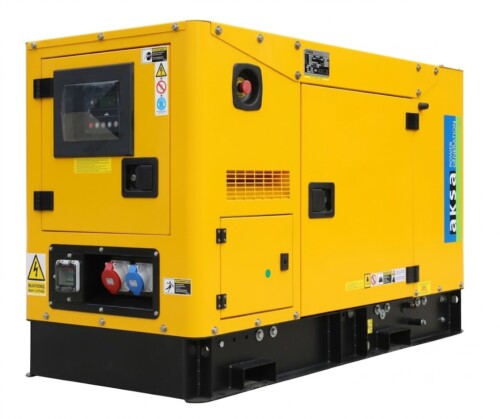

The AKSA APD13A is a compact diesel generating set designed for dependable standby and prime power use across residential backup, small commercial premises, farms, workshops, site cabins, and light-duty power applications. It delivers 12 kVA / 9.6 kW standby power and 11 kVA / 8.8 kW prime power, making it suitable for installations requiring stable 400/231V, 50Hz, 3-phase electrical supply.
Powered by an AKSA A4CRX19 diesel engine, the APD13A uses a 4-cylinder, 1.809-litre, in-line diesel engine running at 1500rpm. The engine is designed for compact generator applications where reliable operation, straightforward servicing, and efficient low-load performance are required.
The generator is supplied with an AKSA AK 109 alternator, built for stable output in small standby and prime power applications. The generator set is factory-built and production-tested to support reliable use in residential, commercial, agricultural, workshop, and site power environments.
Control and protection are handled by the DSE6120 control panel. The controller supports automatic mains failure operation, generator monitoring, operating status display, alarm indication, and shutdown protection. The APD13A is available in open or ACP 1A canopy configuration depending on installation requirements.
Key features
- 12 kVA / 9.6 kW standby power
- 11 kVA / 8.8 kW prime power
- AKSA A4CRX19 diesel engine
- 400/231V, 50Hz, 3-phase output
- 1500rpm generator set speed
- 0.8 power factor
- 4-cylinder, 1.809-litre in-line diesel engine
- DSE6120 control panel
- AKSA AK 109 alternator
- Automatic mains failure control support
- Compact diesel generator set design
- Factory-built and production-tested generator set
- Open or ACP 1A canopy configuration
- Suitable for standby and prime power applications
- Suitable for residential, small commercial, agricultural, workshop, site cabin, and light-duty backup power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD13A |
| Fuel type | Diesel |
| Standby power | 12 kVA / 9.6 kW |
| Prime power | 11 kVA / 8.8 kW |
| Standby current | 17.32 A |
| Voltage | 400/231V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | AKSA A4CRX19 |
| Engine speed | 1500rpm |
| Cylinders | 4 in-line |
| Displacement | 1.809 litres |
| Bore x stroke | 80 ? 90 mm |
| Compression ratio | 18:1 |
| Alternator | AKSA AK 109 |
| Controller | DSE6120 |
| Canopy | ACP 1A |
| Noise level | 83 dB(A) at 1m / 70 dB(A) at 7m |
| Sound-attenuated dry weight | 470 kg |
| Sound-attenuated dimensions | 1522 ? 823 ? 1127 mm |
| Fuel tank capacity | 32 L canopy |
| Configuration options | Open or sound-attenuated canopy |
| Application | Standby and prime power |
