AKSA APD17MA Diesel Generator – 50Hz
AKSA APD17MA diesel generator set rated at 11 kVA / 11 kW standby and 10 kVA / 10 kW prime. Powered by an AKSA A4CRX18 diesel engine, this 230/115V, 50Hz, single-phase generator is designed for compact standby and prime power applications, with DSE6120 control, brushless alternator, integrated fuel tank, and optional sound-attenuated canopy configuration.
Brand: AKSA
Product Overview
The AKSA APD17MA is a compact diesel generating set designed for dependable standby and prime power use across residential backup, small commercial premises, farms, workshops, site cabins, and light-duty power applications. It delivers 11 kVA / 11 kW standby power and 10 kVA / 10 kW prime power, making it suitable for installations requiring stable 230/115V, 50Hz, single-phase electrical supply.
Powered by an AKSA A4CRX18 diesel engine, the APD17MA uses a 4-cylinder, 1.808-litre, in-line diesel engine running at 1500rpm. The engine is naturally aspirated and water cooled, with direct fuel injection, mechanical governor control, replaceable fuel, oil and dry element air filters, cooling radiator and fan, starter battery system, flexible fuel connection hoses, manual oil sump drain valve, industrial exhaust silencer, steel bellows, and a 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with revolving field design, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, solid-state automatic voltage regulation, and direct-drive centrifugal blower cooling. This helps provide stable electrical output for compact single-phase standby and prime power loads.
Control and protection are handled by the DSE6120 control panel. The controller supports automatic mains failure operation, generator monitoring, operating status display, alarm indication, engine and alternator protection, and shutdown handling. The APD17MA is available in open or sound-attenuated canopy configuration depending on installation requirements.
Key features
- 11 kVA / 11 kW standby power
- 10 kVA / 10 kW prime power
- AKSA A4CRX18 diesel engine
- 230/115V, 50Hz, single-phase output
- 1500rpm engine speed
- Power factor 1.0
- 4-cylinder, 1.808-litre in-line diesel engine
- Naturally aspirated and water cooled
- Direct injection fuel system
- Mechanical governor system
- Brushless single-bearing alternator
- Self-excited and self-regulating alternator system
- Solid-state automatic voltage regulator
- Class H alternator insulation
- IP21 standard alternator protection; IP22/IP23 available
- DSE6120 control panel
- Integrated fuel tank

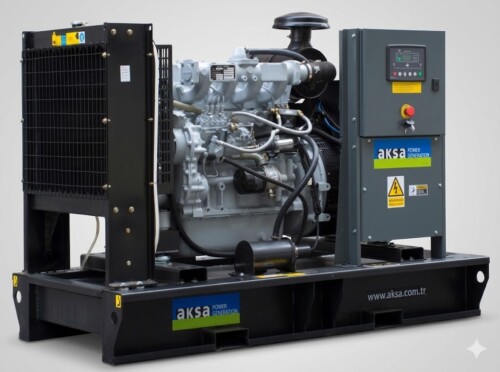

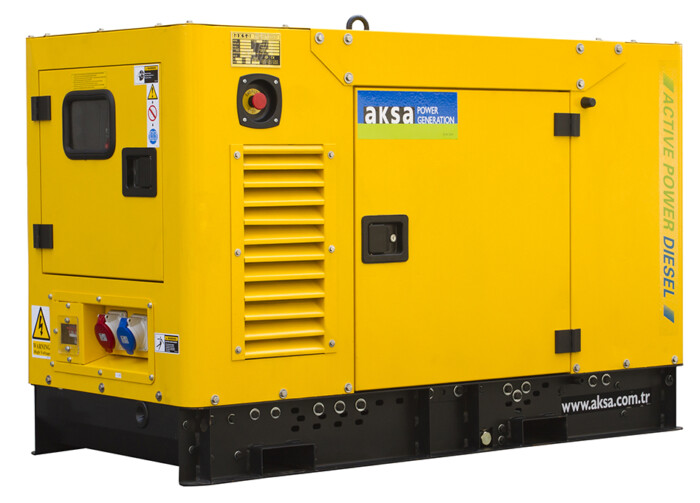

- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, residential, small commercial, agricultural, workshop, site cabin, and light-duty backup power use
Technical summary
| Specification | Details |
|---|---|
| Manufacturer | AKSA Power Generation |
| Model | APD17MA |
| Fuel type | Diesel |
| Standby power | 11 kVA / 11 kW |
| Prime power | 10 kVA / 10 kW |
| Voltage | 230/115V |
| Frequency | 50Hz |
| Phase | Single Phase |
| Power factor | 1.0 |
| Engine | AKSA A4CRX18 |
| Engine speed | 1500rpm |
| Engine power output | 17 kWm / 22.8 HP |
| Cylinders | 4 in-line |
| Displacement | 1.808 litres |
| Bore x stroke | 80 ? 90 mm |
| Compression ratio | 18:1 |
| Aspiration | Natural |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Mechanical |
| Starting system | 12/24V DC starter and charge alternator |
| Fuel consumption at full load | 4.6 L/hr |
| Fuel tank capacity | 32 L open / 32 L canopy |
| Oil capacity | 6.5 L |
| Coolant capacity | 18.5 L |
| Radiator cooling air | 210 m?/min |
| Engine air intake | 1.26 m?/min |
| Exhaust gas flow | 5.8 m?/min |
| Alternator type | Brushless single bearing, revolving field |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Alternator cooling | Direct drive centrifugal blower fan |
| Insulation class | Class H |
| Protection class | IP21 standard; IP22/IP23 available |
| AC waveform distortion | No load < 1.5%; non-distorting balanced linear load < 5% |
| Telephone influence factor | < 50 per NEMA MG1-22.43 |
| Telephone harmonic factor | < 2% |
| Controller | DSE6120 |
| Open set dimensions | 1400 ? 760 ? 927 mm |
| Open set dry weight | 390 kg |
| Sound-attenuated dimensions | 1672 ? 823 ? 1127 mm |
| Sound-attenuated dry weight | 515 kg |
| Configuration options | Open, canopy, soundproof canopy, or on-road trailer |
| Standby KVA | 0-20 KVA |
|---|
