Product Overview

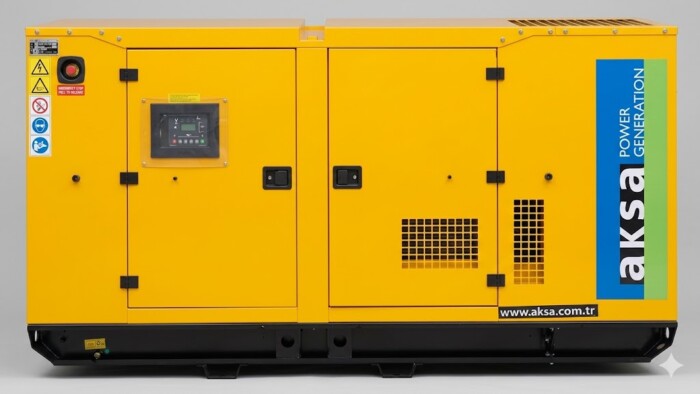

The AKSA APD200A is a diesel generating set designed for dependable standby and prime power use across commercial premises, farms, workshops, site cabins, light industrial units, construction sites, and general backup power applications. It delivers 200 kVA / 160 kW standby power and 182 kVA / 145.6 kW prime power, making it suitable for installations requiring stable 400/231V, 50Hz, 3-phase electrical supply.
Powered by an AKSA A6CRX71TI diesel engine, the APD200A uses a 6-cylinder, 7.01-litre, in-line diesel engine running at 1500rpm. The engine is turbocharged with intercooler, water cooled, and fitted with direct injection fuel system, electronic governor control, replaceable fuel filter, oil filter, dry element air filter, cooling radiator and fan, starter battery system, flexible fuel connection hoses, manual oil sump drain valve, industrial exhaust silencer, steel bellows, and a 12/24V DC starter and charge alternator system.
The generator is supplied with an AKSA AK 4150 alternator designed for stable 3-phase output in standby and prime power applications. The alternator system supports dependable voltage performance for commercial, agricultural, construction, light industrial, and backup power loads.
Control and protection are handled by the DSE6120 control panel. The controller supports automatic mains failure operation, generator monitoring, operating status display, alarm indication, engine and alternator protection, and shutdown handling. The APD200A is available in open or sound-attenuated canopy configuration depending on installation requirements.
Key features
- 200 kVA / 160 kW standby power
- 182 kVA / 145.6 kW prime power
- AKSA A6CRX71TI diesel engine
- 400/231V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 7.01-litre in-line diesel engine
- Turbocharged with intercooler
- Water-cooled engine design
- Direct injection fuel system
- Electronic governor system
- AKSA AK 4150 alternator
- DSE6120 control panel
- Integrated fuel tank
- Heavy-duty fabricated steel base frame
- Factory-tested with full-load, control, and safety shutdown checks
- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, commercial, agricultural, workshop, construction, light industrial, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD200A |
| Fuel type | Diesel |
| Standby power | 200 kVA / 160 kW |
| Prime power | 182 kVA / 145.6 kW |
| Voltage | 400/231V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | AKSA A6CRX71TI |
| Engine speed | 1500rpm |
| Engine power output | 176 kWm / 236 HP |
| Cylinders | 6 in-line |
| Displacement | 7.01 litres |
| Bore x stroke | 108 ? 130 mm |
| Compression ratio | 17:1 |
| Aspiration | Turbocharged with intercooler |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Electronic |
| Fuel consumption at full load | 42.2 L/hr |
| Fuel tank capacity | 271 L |
| Oil capacity | 16 L |
| Coolant capacity | 38 L |
| Radiator cooling air | 190 m?/min |
| Engine air intake | 11.9 m?/min |
| Exhaust gas flow | 32.5 m?/min |
| Alternator | AKSA AK 4150 |
| Control panel | DSE6120 |
| Canopy | ACP 6B |
| Open set dimensions | 2726 ? 1100 ? 1744 mm |
| Open set dry weight | 1825 kg |
| Sound-attenuated dimensions | 3265 ? 1163 ? 1858 mm |
| Sound-attenuated dry weight | 2180 kg |
| Sound-attenuated fuel tank capacity | 271 L |
| Configuration options | Open or sound-attenuated canopy |
