Product Overview

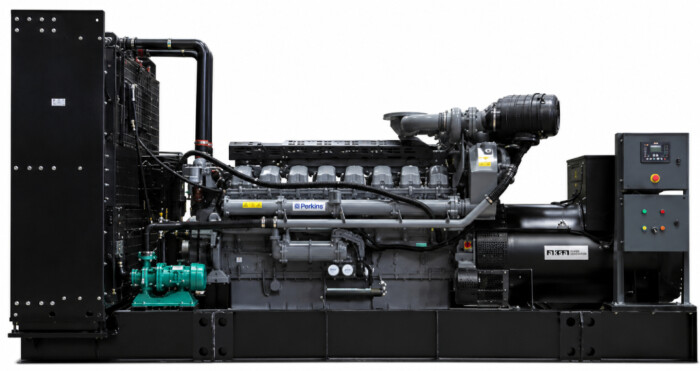

The AKSA APD2250P is a high-capacity diesel generating set built for dependable standby and prime power use across commercial premises, industrial sites, infrastructure facilities, construction projects, data centres, agricultural operations, and critical backup power applications. It delivers 2250 kVA / 1800 kW standby power and 2000 kVA / 1600 kW prime power, making it suitable for installations that require stable 400/231V, 50Hz, 3-phase electrical supply.
Powered by a Perkins 4016-61TRG2 diesel engine, the APD2250P uses a 16-cylinder, 61.123-litre, V-type diesel engine running at 1500rpm. The engine is turbocharged and intercooled, with direct fuel injection, electronic governor control, water cooling, replaceable fuel, oil and dry element air filters, cooling radiator and fan, and 12/24V DC starter and charge alternator system.
The generator is supplied with a Mecc Alte ECO 46-1L/4 A alternator, offering brushless operation, Class H insulation, automatic voltage regulation, and stable output for large standby and prime power loads. This supports dependable performance for industrial, infrastructure, data centre, and critical backup power applications.
Control and protection are handled by the DSE7320 control panel. The controller supports generator monitoring, automatic mains failure operation, operating status display, alarms, fault handling, and shutdown protection. The APD2250P is available in open or sound-attenuated canopy configuration depending on installation requirements.
Key features
- 2250 kVA / 1800 kW standby power
- 2000 kVA / 1600 kW prime power
- Perkins 4016-61TRG2 diesel engine
- 400/231V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 16-cylinder, 61.123-litre V-type diesel engine
- Turbocharged and intercooled
- Water-cooled cooling system
- Direct injection fuel system
- Electronic governor system
- Mecc Alte ECO 46-1L/4 A alternator
- Brushless alternator design
- Automatic voltage regulation
- Class H alternator insulation
- DSE7320 control panel
- Heavy-duty fabricated steel base frame
- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, commercial, industrial, infrastructure, data centre, agricultural, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD2250P |
| Fuel type | Diesel |
| Standby power | 2250 kVA / 1800 kW |
| Prime power | 2000 kVA / 1600 kW |
| Voltage | 400/231V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Standby current | 3247.69 A |
| Engine | Perkins 4016-61TRG2 |
| Engine speed | 1500rpm |
| Engine power output | 1937 kWm / 2596.5 HP |
| Cylinders | 16 V-type |
| Displacement | 61.123 litres |
| Bore x stroke | 160 ? 190 mm |
| Compression ratio | 13.1:1 |
| Aspiration | Turbocharged and intercooled |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Electronic |
| Starting system | 12/24V DC starter and charge alternator |
| Fuel consumption at full load | 434 L/hr |
| Fuel tank capacity | Open: N/A / Canopy: 2200 L |
| Oil capacity | 213 L |
| Coolant capacity | 340 L |
| Radiator cooling air | 2430 m?/min |
| Engine air intake | 145 m?/min |
| Exhaust gas flow | 387 m?/min |
| Alternator | Mecc Alte ECO 46-1L/4 A |
| Alternator type | Brushless alternator |
| Insulation class | Class H |
| Controller | DSE7320 |
| Canopy | AK 99 |
| Open set dimensions | 5800 ? 2250 ? 2900 mm |
| Open set dry weight | 12000 kg |
| Canopy fuel tank capacity | 2200 L |
| Configuration options | Open or sound-attenuated canopy |
