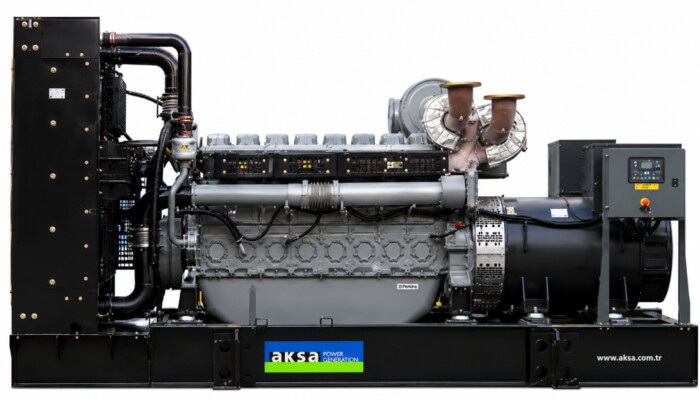

Product Overview
The AKSA APD1000P is a high-capacity diesel generating set built for dependable standby and prime power use across commercial premises, farms, workshops, construction sites, industrial units, infrastructure facilities, and backup power applications. It delivers 1000 kVA / 800 kW standby power and 910 kVA / 728 kW prime power, making it suitable for installations that require stable 400/230V, 50Hz, 3-phase electrical supply.
Powered by a Perkins 4008-TAG1A diesel engine, the APD1000P uses an 8-cylinder, 30.561-litre, turbocharged diesel engine running at 1500rpm. The engine features direct fuel injection, electronic governor control, replaceable fuel, oil and dry element air filters, cooling radiator and fan, starter battery system, flexible fuel connections, and a 12/24V DC starter and charge alternator system.
The generator is supplied with a brushless single-bearing alternator with revolving field design, 2/3 pitch stator, Class H insulation, self-excitation, self-regulation, and direct-drive centrifugal blower cooling. This helps provide stable electrical output for high-capacity standby and prime power loads.
The APD1000P is available in open or sound-attenuated canopy configuration depending on installation requirements. Every generating set is factory tested, including full-load testing and checks for control and safety shutdown functions before delivery.
Key features
- 1000 kVA / 800 kW standby power
- 910 kVA / 728 kW prime power
- Perkins 4008-TAG1A diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 8-cylinder, 30.561-litre diesel engine
- Turbocharged engine design
- Water-cooled cooling system
- Direct injection fuel system
- Electronic governor system
- Brushless single-bearing alternator
- Self-excited and self-regulating alternator system
- Class H alternator insulation
- Integrated fuel tank
- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, commercial, agricultural, workshop, construction, industrial, infrastructure, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD1000P |
| Fuel type | Diesel |
| Standby power | 1000 kVA / 800 kW |
| Prime power | 910 kVA / 728 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | Perkins 4008-TAG1A |
| Engine speed | 1500rpm |
| Engine power output | 882 kWm / 1182 HP |
| Cylinders | 8 in-line |
| Displacement | 30.561 litres |
| Bore x stroke | 160 ? 190 mm |
| Compression ratio | 13.6:1 |
| Aspiration | Turbocharged |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Electronic |
| Starting system | 12/24V DC starter and charge alternator |
| Fuel consumption at full load | 195 L/hr |
| Fuel tank capacity | Open: N/A / Canopy: 1500 L |
| Oil capacity | 153 L |
| Coolant capacity | 149 L |
| Radiator cooling air | 1248 m?/min |
| Alternator type | Brushless single bearing, revolving field |
| Alternator poles | 4 poles |
| Stator | 2/3 pitch |
| Rotor | Single bearing, flexible disc |
| Exciter type | Self excited |
| Alternator cooling | Direct drive centrifugal blower fan |
| Insulation class | Class H |
| Protection class | IP21 standard; IP22/IP23 available |
| Open set dimensions | 4866 ? 2060 ? 2468 mm |
| Open set dry weight | 8250 kg |
| Sound-attenuated dimensions | 7500 ? 2300 ? 2620 mm |
| Sound-attenuated dry weight | 10500 kg |
| Configuration options | Open, canopy, soundproof canopy, or on-road trailer |
