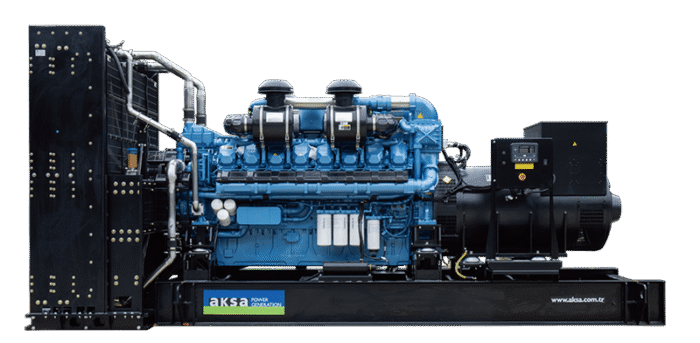

Key Features
- 1925 kVA standby power and 1750 kVA prime power
- Powered by a Baudouin 16M33G1925/5 diesel engine
- 16-cylinder V-type engine configuration
- Turbocharged and water-cooled engine design
- Electronic governor system for stable performance
- Brushless, single-bearing alternator
- Class H insulation system
- Automatic Voltage Regulator (MX341)
- Deep Sea Electronics DSE 7320 AMF control module
- Integrated fuel tank with 2500 litre capacity
- Available in open type or sound attenuated canopy configuration
Engine Specifications
| Engine Brand | Baudouin |
|---|
| Engine Model | 16M33G1925/5 |
|---|
| Configuration | 16-cylinder, V-type |
|---|
| Engine Speed | 1500 rpm |
|---|
| Aspiration | Turbocharged |
|---|
| Cooling Method | Water cooled |
|---|
| Total Displacement | 52.3 litres |
|---|
| Bore x Stroke | 150 x 185 mm |
|---|
| Compression Ratio | 15:1 |
|---|
| Standby Engine Power | 1700 kW / 2280 HP |
|---|
| Prime Engine Power | 1575 kW / 2113 HP |
|---|
| Governor | Electronic |
|---|
| Fuel Consumption at 100% Prime Load | 370 L/hr |
|---|
| Oil Capacity | 250 litres |
|---|
| Coolant Capacity | 315 litres |
|---|
| Cooling Fan Air Flow | 1700 m?/min |
|---|
| Fuel Tank Capacity | 2500 litres |
|---|
Power Ratings
| Voltage | Standby Power | Prime Power |
|---|
| 400/231 V | 1925 kVA / 1540 kW | 1750 kVA / 1400 kW |
Alternator Specifications
- Brushless, single-bearing alternator
- Class H insulation system
- MX341 Automatic Voltage Regulator
- IP22 protection standard
- Designed for 3-phase, 50 Hz, 400/231 V output
Control System
- Deep Sea Electronics DSE 7320 AMF module
- Automatic mains and generator monitoring
- LED alarm indication and LCD display
- Static battery charger
- Emergency stop push button
Monitoring Functions
- Generator voltage, current, frequency monitoring
- Engine speed, oil pressure, coolant temperature
- Battery voltage monitoring
- Running hours and maintenance schedule
Protection Features
- Low oil pressure protection
- High coolant temperature protection
- Over/under voltage and frequency protection
- Over-current and kW overload protection
- Emergency stop protection
- Earth fault protection (optional)
Dimensions and Fuel Tank Capacity
| Open Type Dimensions | 5400 x 2400 x 2650 mm |
|---|
| Sound Attenuated Type Dimensions | 8100 x 2500 x 2750 mm |
|---|
| Fuel Tank Capacity | 2500 litres |
|---|
Applications
Suitable for commercial, industrial, telecom, data centers, construction, utilities, and emergency backup power systems requiring high-capacity diesel standby or prime power.
Optional Equipment
- Fuel-water separator filter
- Oil heater
- Anti-condensation heater
- Oversized alternator
- Main line circuit breaker
- Automatic synchronising and power control system
- Multi-generator parallel system
- ISO container or sound attenuated canopy
- Remote annunciator panel and communication
- Maintenance tool kit and additional silencers
