BAUDOUIN APD150BD Diesel Generator – 50Hz

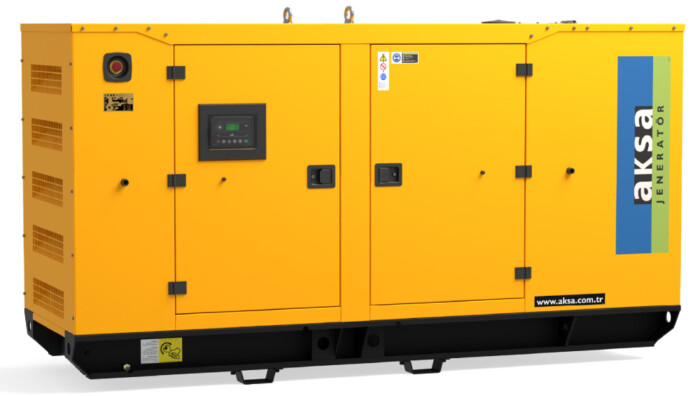

Aksa APD150BD Diesel Generator ? 150 kVA Standby Power

The Aksa APD150BD Diesel Generator is a diesel generating set designed for reliable standby and prime power applications. Powered by a Baudouin 6M11G150/5 diesel engine, this generator provides dependable 400/230V, 50Hz three-phase power for commercial, industrial, and infrastructure use.

With a standby rating of 150 kVA / 120 kW and a prime rating of 138 kVA / 110.4 kW, the APD150BD is suitable for sites requiring efficient and dependable backup power.

Key Features

• 150 kVA standby power and 138 kVA prime power
• Powered by a Baudouin 6M11G150/5 diesel engine
• 6-cylinder inline engine configuration
• Turbocharged and aftercooled engine design
• Electronic governor system for stable performance
• Brushless, single-bearing alternator
• Class H insulation system
• Self-excited and self-regulating alternator
• Solid state Automatic Voltage Regulator
• Deep Sea Electronics DSE 6120 AMF control module
• Integrated fuel tank with 271 litre capacity
• Available in open type or sound attenuated canopy configuration

Engine Specifications

Power Ratings

Alternator Features

• Brushless, single-bearing alternator design
• Revolving field construction
• Flexible disc rotor system
• 4-pole construction
• Class H insulation system
• Self-excited and self-regulating system
• Solid state Automatic Voltage Regulator
• 2/3 pitch stator winding for improved harmonics
• Direct drive centrifugal blower fan cooling
• Standard degree of protection IP22
• IP23 protection available as an option
• No-load waveform total harmonic distortion below 1.5%
• Balanced linear load waveform distortion below 5%
• Telephone Influence Factor below 50 per NEMA MG1-22.43
• Telephone Harmonic Factor below 2%

Control System

The APD150BD is equipped with an Auto Mains Failure control panel featuring the DSE 6120 control module. This system monitors the mains supply and generator operation, automatically starting and stopping the generating set when required.

• Microprocessor-based AMF control module
• Automatic control of mains and generator contactors
• Engine performance monitoring
• AC power output monitoring
• LED alarm indication
• Front panel configuration of timers and alarm trip points
• 4 configurable analogue/digital inputs
• 8 configurable digital inputs
• 6 configurable DC outputs
• Easy push button control
• Static battery charger
• Emergency stop push button
• Power outlet terminal board mounted on the generator base frame

Monitoring Functions

• Generator voltage monitoring, L-L and L-N
• Generator current monitoring for L1, L2 and L3
• Generator frequency monitoring
• Generator kVA monitoring
• Generator kW monitoring
• Generator power factor monitoring
• Engine oil pressure monitoring
• Engine temperature monitoring
• Plant battery voltage monitoring
• Engine running hours display
• Mains voltage monitoring, phase-to-phase and phase-to-neutral

Protection Features

• Over speed and under speed protection
• Low and high battery voltage alarm
• Start and stop failure protection
• Charge failure alarm
• Over current protection
• Under/over generator voltage protection
• Low oil pressure alarm
• Emergency stop protection
• High engine temperature alarm

Dimensions and Weight

Standard Specifications

• Heavy-duty Baudouin diesel engine
• Four-stroke, water-cooled engine
• Direct injection fuel system
• Electronic governor system
• 12V DC starter and charge alternator
• Replaceable fuel filter, oil filter and dry element air filter
• Cooling radiator and fan
• Starter battery with lead acid, rack and cables
• Flexible fuel connection hoses
• Manual oil sump drain valve
• Industrial capacity exhaust silencer and steel bellows
• Jacket water heater for automatic models
• Operation manuals and circuit diagram documents

Applications

The Aksa APD150BD is suitable for commercial buildings, offices, warehouses, telecom sites, workshops, farms, light industrial units, construction sites, and emergency backup power systems where reliable diesel standby or prime power is required.

Optional Equipment

• Oil heater
• 3/4 pole output circuit breaker
• Anti-condensation heater
• Bulk fuel tank
• Automatic filling system
• Fuel-water separator filter
• Low fuel level alarm
• Residential silencer
• Enclosure or sound proof canopy
• Trailer option
• Manual oil drain pump
• Maintenance tool kit
• Charge ammeter
• 3-pole transfer switch
• 4-pole transfer switch
• Earth fault protection

The Aksa APD150BD Diesel Generator is built for reliable medium-capacity power generation, combining Baudouin diesel engine technology, DSE 6120 AMF control, brushless alternator performance, and durable construction for dependable standby and prime power applications.
