BAUDOUIN APD1400BD Diesel Generator – 50Hz
The Aksa APD1400BD Diesel Generator is a 1400 kVA standby / 1270 kVA prime power generator powered by a Baudouin 12M33G1400/5 diesel engine. Designed for reliable 400/231V, 50Hz three-phase power, it features electronic governing, Aksa AK71120 brushless alternator technology, DSE 7320 AMF control, and heavy-duty construction for commercial and industrial standby power applications.
Brand: BAUDOUIN
Aksa APD1400BD Diesel Generator ? 1400 kVA Standby Power
The Aksa APD1400BD Diesel Generator is a high-capacity diesel generating set designed for reliable standby and prime power applications. Powered by a Baudouin 12M33G1400/5 diesel engine, this generator provides dependable 400/231V, 50Hz three-phase power for commercial, industrial, infrastructure, and mission-critical applications.
With a standby rating of 1400 kVA / 1120 kW and a prime rating of 1270 kVA / 1016 kW, the APD1400BD is suitable for sites requiring dependable high-output diesel backup or prime power.
Key Features
- 1400 kVA standby power and 1270 kVA prime power
- Powered by a Baudouin 12M33G1400/5 diesel engine
- 12-cylinder V-type engine configuration
- Turbocharged and water-cooled engine design
- Electronic governor system for stable performance
- Aksa AK71120 brushless alternator
- Class H insulation system
- MX341 Automatic Voltage Regulator
- Deep Sea Electronics DSE 7320 AMF control module
- Designed for 400/231V, 50Hz, 3 phase output
- Open type fuel tank capacity of 2000 litres

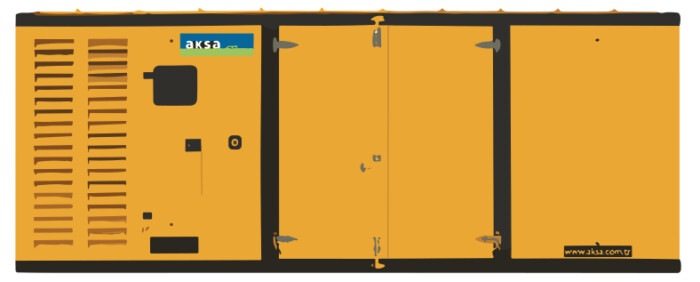

- Available in open type or AK 96-AP1400 sound attenuated canopy configuration
Engine Specifications
| Engine Brand | Baudouin |
|---|---|
| Engine Model | 12M33G1400/5 |
| Engine Configuration | 12-cylinder, V-type |
| Engine Speed | 1500 rpm |
| Aspiration | Turbocharged |
| Cooling Method | Water cooled |
| Total Displacement | 39.2 litres |
| Bore x Stroke | 150 x 185 mm |
| Compression Ratio | 15:1 |
| Standby Engine Power | 1210 kW / 1623 HP |
| Prime Engine Power | 1100 kW / 1475 HP |
| Governor System | Electronic |
| Injection System | Direct injection |
| Fuel Pump Type | Mechanical |
| Operating Voltage | 24 Vdc |
| Battery Capacity | 2 x 143 Ah |
| Charge Alternator | 55 A |
| Oil Capacity | 160 litres |
| Coolant Capacity | 105 litres engine only / 159 litres total |
| Cooling Fan Air Flow | 1140 m?/min |
| Air Filter | Dry type |
| Fuel Consumption at 100% Prime Load | 258.6 L/hr |
| Fuel Consumption at 75% Prime Load | 190.7 L/hr |
| Fuel Consumption at 50% Prime Load | 129.2 L/hr |
| Block Heater | 2 x 3000 W |
Power Ratings
| Voltage | Standby Power | Prime Power | Standby Current |
|---|---|---|---|
| 400/231 V | 1400 kVA / 1120 kW | 1270 kVA / 1016 kW | 2020.79 A |
| Frequency | 50 Hz | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8 | ||
Alternator Specifications
| Alternator Manufacturer | Aksa |
|---|---|
| Alternator Model | AK71120 |
| Alternator Power | 1400 kVA |
| Design | Brushless |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Phase | 3 Phase |
| AVR | MX341 |
| Voltage Regulation | ?1% |
| Insulation System | Class H |
| Protection | IP22 |
| Rated Power Factor | 0.8 |
| Alternator Weight | 2760 kg |
| Cooling Air | 2.69 m?/min |
Control System
The APD1400BD is equipped with an Auto Mains Failure control panel featuring the DSE 7320 control module. This system monitors the mains supply and generator operation, automatically starting and stopping the generating set when required.
- DSE 7320 generator control and AMF module
- MODBUS communication support
- Main status and instrumentation LCD display
- Menu navigation buttons
- Mains and generator transfer buttons
- Status LEDs and fault alarm LEDs
- Operation selecting buttons
- Electronic battery charger
- Control circuit fuses
- Emergency stop push button
Monitoring Functions
- Generator voltage monitoring, L-L and L-N
- Generator current monitoring for L1, L2 and L3
- Generator frequency monitoring
- Engine speed monitoring
- Engine oil pressure monitoring
- Engine coolant temperature monitoring
- Battery voltage monitoring
- Engine running hours display
- Mains voltage and frequency monitoring
- Generator output and load monitoring
- kW, kVA and power factor monitoring
Protection Features
- Low oil pressure protection
- High coolant temperature protection
- Over speed and under speed protection
- Under/over generator voltage protection
- Under/over generator frequency protection
- Battery voltage warning
- Charge failure warning
- Fail to start protection
- Fail to stop warning
- Emergency stop shutdown
- Generator over-current protection
- kW overload protection
- Earth fault protection option
- Low fuel level alarm option
- High fuel level alarm option
Dimensions and Fuel Tank Capacity
| Open Type Dimensions | 4828 x 1868 x 2545 mm |
|---|---|
| Open Type Fuel Tank Capacity | 2000 litres |
| Canopy Model | AK 96-AP1400 |
| Sound Attenuated Type Dimensions | 7500 x 2300 x 2548 mm |
| Sound Attenuated Fuel Tank Capacity | 1900 litres |
Canopy Features
- Steel profile and sheet metal carrier frame construction
- Steel sheet panel canopy construction
- External emergency stop push button
- Rear or bottom cable outlet
- Corrosion-resistant locks and hinges
- Concealed exhaust system inside the canopy
- Wide lockable access doors on both sides for maintenance
- Separate lockable access door for fuel tank access
- Container-style lifting points on canopy
- Radiator water filling access cap
- Sound insulation materials
- Roof access ladder
Standard Specifications
- Heavy-duty Baudouin diesel engine
- Water-cooled engine system
- Radiator with mechanical fan
- Protective grille for rotating and hot parts
- Electric starter and charge alternator
- Starting batteries with lead acid, rack and cables
- Engine coolant heater
- Base frame with integrated fuel tank and anti-vibration isolators
- Flexible fuel connection hoses
- Single-bearing Class H alternator
- Industrial exhaust silencer and steel bellows supplied separately for open sets
- Electronic battery charger
- Application and installation manual
Applications
The Aksa APD1400BD is suitable for commercial buildings, industrial facilities, manufacturing plants, warehouses, healthcare facilities, telecom infrastructure, data centres, construction sites, utilities, and emergency backup power systems where reliable high-capacity diesel standby or prime power is required.
Optional Equipment
- Fuel-water separator filter
- Oil heater
- Anti-condensation heater
- Oversized alternator
- PMG excitation and AVR
- Main line circuit breaker
- ISO container option
- Galvanised canopy coating
- Marine-grade paint
- Automatic synchronising and power control system
- Multi-generator parallel system
- Parallel system with mains
- Transition synchronisation with mains
- Remote annunciator panel
- Alarm output relays
- Remote communication with modem
- Earth fault protection
- Charge ammeter
- Three or four pole transfer system
- Three or four pole motor-operated circuit breaker
- Main fuel tank
- Automatic or manual fuel filling system
- Electrical or manual oil drain pump
- Low and high fuel level alarm
- Inlet and outlet motorised louvers
- Inlet and outlet acoustic baffles
- Maintenance tool kit
- 1500 / 3000 hours maintenance kit
- Supplied with oil and coolant option
- Residential silencer
- Spark arrester silencer
- Critical silencer
- Catalytic converter
The Aksa APD1400BD Diesel Generator is built for reliable high-capacity power generation, combining Baudouin 12-cylinder diesel engine technology, Aksa AK71120 alternator performance, DSE 7320 AMF control, and durable construction for dependable standby and prime power applications.
