Product Overview
The AKSA AD276 is a diesel generating set designed for dependable standby and prime power use across commercial premises, farms, workshops, site facilities, industrial units, construction sites, and general backup power applications. It delivers 276 kVA / 220.8 kW standby power and 250 kVA / 200 kW prime power, making it suitable for installations requiring stable 400/230V, 50Hz, 3-phase electrical supply.
Powered by a Doosan P126TI-II diesel engine, the AD276 uses a 6-cylinder, 11.051-litre, in-line diesel engine running at 1500rpm. The engine is turbocharged and intercooled, water cooled, and fitted with direct injection fuel system, electronic governor control, replaceable fuel and oil filters, dry element air filter, cooling radiator and fan, starter battery system, flexible fuel connection hoses, industrial exhaust silencer, and 12/24V DC starter and charge alternator support.
The generator is supplied with a brushless alternator system designed for stable 3-phase output in standby and prime power applications. The alternator system supports reliable voltage performance for commercial, industrial, agricultural, construction, and backup power loads.

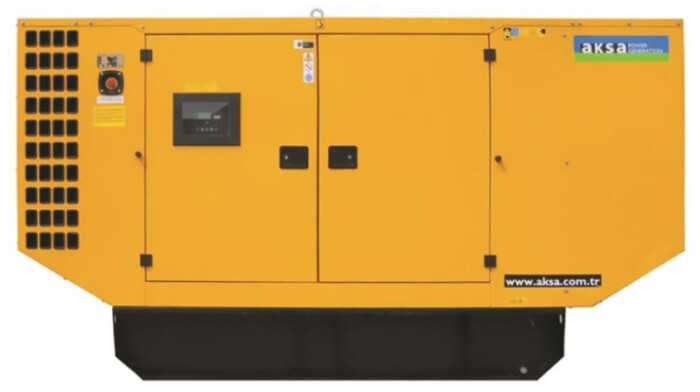

The AD276 is available in open or sound-attenuated canopy configuration depending on installation requirements. The complete generating set is mounted on a heavy-duty fabricated steel base frame with anti-vibration isolators and integrated fuel tank support. Every generating set is factory tested, including full-load testing and checks for control and safety shutdown functions before delivery.
Key features
- 276 kVA / 220.8 kW standby power
- 250 kVA / 200 kW prime power
- Doosan P126TI-II diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 11.051-litre in-line diesel engine
- Turbocharged and intercooled engine design
- Water-cooled cooling system
- Direct injection fuel system
- Electronic governor system
- Brushless alternator system
- Automatic voltage regulation
- Heavy-duty fabricated steel base frame
- Anti-vibration mounting system
- Integrated fuel tank support
- Factory-tested with full-load, control, and safety shutdown checks
- Open or sound-attenuated canopy configuration
- Suitable for standby, prime, commercial, agricultural, workshop, construction, industrial, and site power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | AD276 |
| Fuel type | Diesel |
| Standby power | 276 kVA / 220.8 kW |
| Prime power | 250 kVA / 200 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine make | Doosan |
| Engine model | P126TI-II |
| Engine speed | 1500rpm |
| Engine standby power | 294 kWm |
| Engine prime power | 265 kWm |
| Cylinders | 6 in-line |
| Displacement | 11.051 litres |
| Bore x stroke | 123 ? 155 mm |
| Compression ratio | 17:1 |
| Aspiration | Turbocharged and intercooled |
| Cooling | Water cooled |
| Fuel system | Direct injection |
| Governor | Electronic |
| Fuel consumption at 100% prime load | 63.1 L/hr |
| Fuel consumption at 75% prime load | 47.0 L/hr |
| Fuel consumption at 50% prime load | 31.3 L/hr |
| Fuel consumption at 25% prime load | 16.9 L/hr |
| Oil capacity | 23 L high level / 20 L low level |
| Coolant capacity | 19 L engine only / approx. 51 L with radiator |
| Battery voltage | 24V DC |
| Charge alternator | 28.5V / 45A |
| Alternator type | Brushless alternator |
| Insulation class | Class H |
| Voltage regulation | Automatic voltage regulation |
| Base frame | Heavy-duty fabricated steel base frame |
| Mounting | Anti-vibration isolators |
| Testing | Factory-tested with full-load, control, and safety shutdown function checks |
| Configuration options | Open or sound-attenuated canopy |
