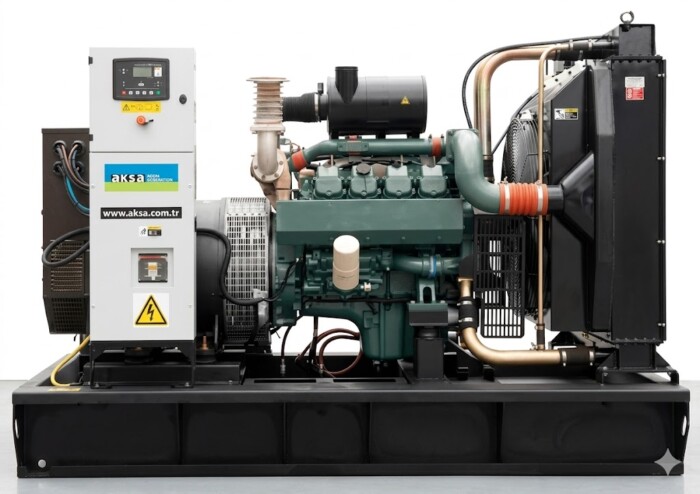

HYUNDAI AD220 Diesel Generator – 50Hz
AKSA AD220 diesel generator set rated at 220 kVA / 176 kW standby and 200 kVA / 160 kW prime. Powered by a Doosan P086TI diesel engine, this 400/231V, 50Hz, 3-phase generator is designed for reliable standby and prime power applications, with DSE7320 control, Aksa AK 4160 alternator, integrated fuel tank, electronic governor, and optional sound-attenuated canopy configuration.
Brand: HYUNDAI
Product Overview
The AKSA AD220 is a diesel generating set designed for dependable standby and prime power use across commercial premises, farms, workshops, site facilities, industrial units, construction sites, and general backup power applications. It delivers 220 kVA / 176 kW standby power and 200 kVA / 160 kW prime power, making it suitable for installations requiring stable 400/231V, 50Hz, 3-phase electrical supply.
Powered by a Doosan P086TI diesel engine, the AD220 uses a 6-cylinder, 8.071-litre, in-line diesel engine running at 1500rpm. The engine is turbocharged and air-to-air intercooled, water cooled, and fitted with direct injection fuel system, electronic governor control, dry-type air filter, 24V DC electrical system, battery support, charge alternator, engine coolant heater, radiator with mechanical fan, and industrial exhaust silencer support.
The generator is supplied with an Aksa AK 4160 alternator rated at 200 kVA. The alternator features brushless construction, Class H insulation, IP22 protection, SX440 automatic voltage regulator, 0.8 rated power factor, and stable voltage regulation for commercial, industrial, agricultural, construction, and backup power loads.
Control and protection are handled by the DSE7320 control panel. The controller supports automatic mains failure operation, generator monitoring, mains and generator voltage monitoring, current monitoring, frequency monitoring, engine oil pressure, coolant temperature, battery voltage, running hours, power metering, alarm indication, event logging, remote communication, and shutdown protection. The AD220 is available in open or AK 50 TRP sound-attenuated canopy configuration depending on installation requirements.
Key features
- 220 kVA / 176 kW standby power
- 200 kVA / 160 kW prime power
- Doosan P086TI diesel engine
- 400/231V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 6-cylinder, 8.071-litre in-line diesel engine
- Turbocharged and air-to-air intercooled
- Water-cooled engine design
- Direct injection fuel system
- Electronic governor system
- Aksa AK 4160 alternator
- Brushless alternator design
- SX440 automatic voltage regulator
- Class H alternator insulation
- IP22 alternator protection
- DSE7320 control panel
- Integrated 380-litre fuel tank
- Heavy-duty base frame with anti-vibration isolators
- Open or AK 50 TRP sound-attenuated canopy configuration
- Suitable for standby, prime, commercial, agricultural, workshop, construction, industrial, and site power use
Technical summary
| Specification | Details |
|---|---|
| Manufacturer | AKSA Power Generation |
| Model | AD220 |
| Fuel type | Diesel |
| Standby power | 220 kVA / 176 kW |
| Prime power | 200 kVA / 160 kW |
| Standby current | 317.55 A |
| Voltage | 400/231V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine make | Doosan |
| Engine model | P086TI |
| Engine speed | 1500rpm |
| Engine standby power | 199 kW / 270 HP |
| Engine prime power | 177 kW / 240 HP |
| Cylinders | 6 in-line |
| Displacement | 8.071 litres |
| Bore x stroke | 111 ? 139 mm |
| Compression ratio | 16.4:1 |
| Aspiration | Turbocharged and air-to-air intercooled |
| Cooling | Water cooled |
| Injection system | Direct injection |
| Fuel pump type | Zexel P inline |
| Governor | Electronic |
| Operating voltage | 24V DC |
| Battery capacity | 2 ? 85 Ah |
| Charge alternator | 45 A |
| Oil capacity | 15.5 L |
| Coolant capacity | 14 L engine only / 35.1 L with radiator |
| Cooling fan air flow | 250 m?/min |
| Fuel consumption at 100% prime load | 43.1 L/hr |
| Fuel consumption at 75% prime load | 31.7 L/hr |
| Fuel consumption at 50% prime load | 21.1 L/hr |
| Alternator | Aksa AK 4160 |
| Alternator power | 200 kVA |
| Alternator voltage | 400V |
| Alternator type | Brushless |
| AVR | SX440 |
| Voltage regulation | ?1% |
| Insulation class | Class H |
| Protection class | IP22 |
| Alternator cooling air | 30.84 m?/min |
| Control panel | DSE7320 |
| Canopy | AK 50 TRP |
| Open set dimensions | 2341 ? 1150 ? 1845 mm |
| Open set dry weight | 1830 kg |
| Open set fuel tank capacity | 380 L |
| Sound-attenuated dimensions | 3402 ? 1217 ? 2007 mm |
| Sound-attenuated dry weight | 2205 kg |
| Sound-attenuated fuel tank capacity | 380 L |
| Configuration options | Open or sound-attenuated canopy |
| Standby KVA | 201-400 KVA |
|---|
