BAUDOUIN APD1100BD Diesel Generator – 50Hz

Aksa APD1100BD Diesel Generator ? 1100 kVA Standby Power

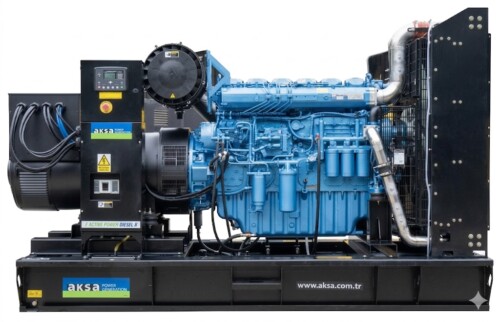

The Aksa APD1100BD Diesel Generator is a high-capacity diesel generating set designed for reliable standby and prime power applications. Powered by a Baudouin 12M26G1100/5 diesel engine, this generator provides dependable 400/231V, 50Hz three-phase power for commercial, industrial, and infrastructure use.

With a standby rating of 1100 kVA / 880 kW and a prime rating of 1000 kVA / 800 kW, the APD1100BD is suitable for sites requiring dependable high-capacity backup or prime power.

Key Features

• 1100 kVA standby power and 1000 kVA prime power
• Powered by a Baudouin 12M26G1100/5 diesel engine
• 12-cylinder V-type engine configuration
• Turbocharged and air-to-air aftercooled engine design
• Electronic governor system for stable performance
• Aksa AK 7825 brushless alternator
• Class H insulation system
• MX341 Automatic Voltage Regulator
• Deep Sea Electronics DSE 7320 AMF control module
• Integrated fuel tank with 1600 litre capacity
• Available in open type or MS 88 sound attenuated canopy configuration

Engine Specifications

Power Ratings

Alternator Specifications

Control System

The APD1100BD is equipped with an Auto Mains Failure control panel featuring the DSE 7320 control module. This system monitors the mains supply and generator operation, automatically starting and stopping the generating set when required.

• DSE 7320 generator control and AMF module
• MODBUS communication support
• Main status and instrumentation display
• Menu navigation buttons
• Close mains and close generator buttons
• Status LEDs and alarm LEDs
• Operation selecting buttons
• Static battery charger
• Control circuit fuses
• Emergency stop push button

Monitoring Functions

• Generator voltage monitoring
• Generator current monitoring
• Generator frequency monitoring
• Engine speed monitoring
• Engine oil pressure monitoring
• Engine coolant temperature monitoring
• Battery voltage monitoring
• Running hours display
• Mains supply monitoring
• Generator output and load monitoring
• kW, kVA and power factor monitoring

Protection Features

• Low oil pressure protection
• High coolant temperature protection
• Low coolant level protection
• Over speed and under speed protection
• Under/over generator voltage protection
• Under/over generator frequency protection
• Battery voltage warning
• Charge failure warning
• Fail to start protection
• Fail to stop warning
• Emergency stop shutdown
• Generator over-current protection
• kW overload protection
• Earth fault protection option

Dimensions and Fuel Tank Capacity

Standard Specifications

• Heavy-duty Baudouin diesel engine
• Water-cooled engine system
• Radiator with mechanical fan
• Protective grille for rotating and hot parts
• Electric starter and charge alternator
• Starting batteries with lead acid, rack and cables
• Engine coolant heater
• Base frame with integrated fuel tank and anti-vibration isolators
• Flexible fuel connection hoses
• Single-bearing Class H alternator
• Industrial exhaust silencer and steel bellows supplied separately for open sets
• Static battery charger
• Application and installation manual

Canopy Features

• Steel canopy structure with polyester powder coating
• Emergency stop push button mounted externally
• Corrosion-resistant locks and hinges
• Large access doors for maintenance
• Base frame fuel tank
• ISO-style lifting points on canopy top corners
• Radiator cap access point on canopy roof
• Soundproofing materials
• Plastic air intake pockets
• Exhaust system integrated within canopy

Applications

The Aksa APD1100BD is suitable for commercial buildings, industrial facilities, manufacturing plants, warehouses, healthcare facilities, telecom infrastructure, data centres, construction sites, utilities, and emergency backup power systems where reliable high-capacity diesel standby or prime power is required.

Optional Equipment

• Fuel-water separator filter
• Oil heater
• Anti-condensation heater
• Oversized alternator
• PMG excitation and AVR
• Main line circuit breaker
• ISO container option
• Galvanised canopy coating
• Marine-grade paint
• Automatic synchronising and power control system
• Multi-generator parallel system
• Parallel system with mains
• Transition synchronisation with mains
• Remote annunciator panel
• Alarm output relays
• Remote communication with modem
• Earth fault protection
• Charge ammeter
• Three or four pole transfer system
• Three or four pole motor-operated circuit breaker
• Main fuel tank
• Automatic or manual fuel filling system
• Electrical or manual oil drain pump
• Low and high fuel level alarm
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Maintenance tool kit
• 1500 / 3000 hours maintenance kit
• Residential silencer
• Spark arrester silencer
• Critical silencer
• Catalytic converter

The Aksa APD1100BD Diesel Generator is built for reliable high-capacity power generation, combining Baudouin diesel engine technology, Aksa AK 7825 alternator performance, DSE 7320 AMF control, and durable construction for dependable standby and prime power applications.
