Product Overview

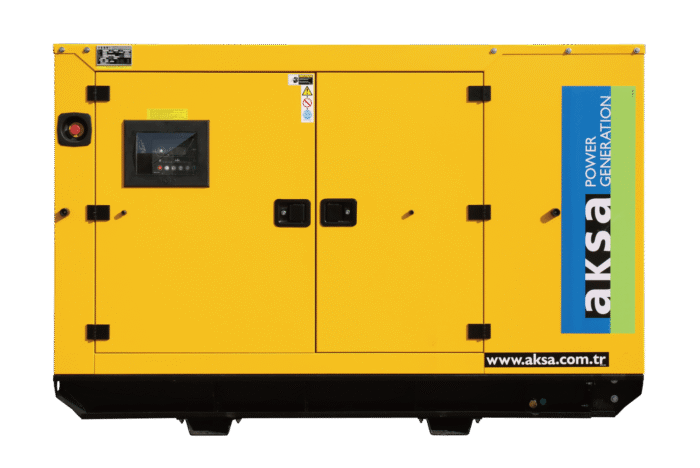

The AKSA APD25A is a compact diesel generating set designed for dependable standby and prime power use across residential backup, small commercial premises, farms, workshops, site cabins, and light-duty power applications. It delivers 25 kVA / 20 kW standby power and 22 kVA / 17.6 kW prime power, making it suitable for installations requiring stable 400/230V, 50Hz, 3-phase electrical supply.
Powered by an AKSA A4CRX24 diesel engine, the APD25A uses a 4-cylinder, 2.545-litre, in-line diesel engine running at 1500rpm. The engine is naturally aspirated and water cooled, with mechanical governor control, replaceable fuel, oil and dry element air filters, cooling radiator and fan, starter battery system, flexible fuel connection hoses, manual oil sump drain valve, industrial exhaust silencer, steel bellows, and a 12/24V DC starter and charge alternator system.
The generator is supplied with an AKSA AK 218 brushless alternator designed for reliable 3-phase output. The alternator uses brushless single-bearing construction, revolving field design, Class H insulation, automatic voltage regulation, and stable output performance for compact standby and prime power loads.
Control and protection are handled by the DSE6120 control panel. The controller supports automatic mains failure operation, generator monitoring, operating status display, alarm indication, engine and alternator protection, and shutdown handling. The APD25A is available in open or sound-attenuated canopy configuration depending on installation requirements.
Key features
- 25 kVA / 20 kW standby power
- 22 kVA / 17.6 kW prime power
- AKSA A4CRX24 diesel engine
- 400/230V, 50Hz, 3-phase output
- 1500rpm engine speed
- 0.8 power factor
- 4-cylinder, 2.545-litre in-line diesel engine
- Naturally aspirated and water cooled
- Mechanical governor system
- AKSA AK 218 alternator
- Brushless alternator design
- Class H alternator insulation
- DSE6120 control panel
- Integrated fuel tank
- Compact diesel generator set design
- Factory-tested with full-load, control, and safety shutdown checks
- Open or ACP 3A sound-attenuated canopy configuration
- Suitable for standby, prime, residential, small commercial, agricultural, workshop, site cabin, and light-duty backup power use
Technical summary
| Specification | Details |
|---|
| Manufacturer | AKSA Power Generation |
| Model | APD25A |
| Fuel type | Diesel |
| Standby power | 25 kVA / 20 kW |
| Prime power | 22 kVA / 17.6 kW |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Phase | 3 Phase |
| Power factor | 0.8 |
| Engine | AKSA A4CRX24 |
| Engine speed | 1500rpm |
| Engine power output | 26.5 kWm / 35.5 HP |
| Cylinders | 4 in-line |
| Displacement | 2.545 litres |
| Aspiration | Naturally aspirated |
| Cooling | Water cooled |
| Governor | Mechanical |
| Fuel tank capacity | 60 L |
| Coolant capacity | 18.5 L |
| Radiator cooling air | 174 m?/min |
| Engine air intake | 1.542 m?/min |
| Exhaust gas flow | 3.9 m?/min |
| Alternator | AKSA AK 218 |
| Alternator type | Brushless alternator |
| Insulation class | Class H |
| Control panel | DSE6120 |
| Canopy | ACP 3A |
| Open set dimensions | 1696 ? 892 ? 1003 mm |
| Open set dry weight | 630 kg |
| Sound-attenuated dimensions | 1980 ? 950 ? 1200 mm |
| Sound-attenuated dry weight | 800 kg |
| Configuration options | Open or sound-attenuated canopy |
| Application | Standby and prime power |
